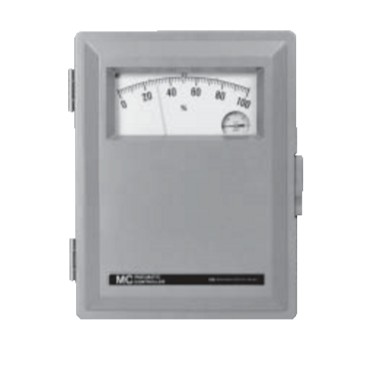

YOKOGAWA MC55 Pneumatic Indicating Controller

The Model MC55 Electronic Indicating Pressure Transmitters measure gauge, absolute, or compound pressure. The instruments transmit a proportional 4 to 20 mA DC signal over long distances using ordinary unshielded leads. The transmission distance is limited only by the load resistance.

Ordering Examples:

MC55*A/GID/SCT

MC55*A/SCT/PG1

MC55*A/SCF□P

MC55*A/PG1/NPT

MC55*A/SCT/NPT/CAL-E

MC55*A/GID/SCT/CAL-E

MC55*A/GID/SCT/CAL-M

MC55*A  Basic Type

MC55*A/GID  Shatterproof glass window

MC55*A/SCT  Stainless steel tag number plate

MC55*A/SCF□P  Special color finish on door

MC55*A/PG1   Flameproof packing adapter

MC55*A/NPT  ANSI connection

MC55*A/CAL-E   P-Calibration

MC55*A/CAL-M   M-Calibration

■ STANDARD SPFCIFICATIONS

Door and Case: Cast aluminum, finished with polyurethane paint. Right grayish green (Munsell 2.5GY5.0/1.0).

Mounting: Surface, flush panel and 2-inch pipe. Scale: Effective nominal length 156 mm (6 inches). Black divisions and letters on white background. Pointer: Fluorescent red.

Output Signal: 4 to 20 mA DC, 2-wire circuit. Supply Voltage: 12 to 45 V DC.

Explosion-protected Construction: TIIS flameproof type certified for d2G4

Certificate: T33436 TIIS intrinsically safe type certified for i3aG4

Certificate: T34322 Note: The applicable safety barrier of BARD-400 is not available due to its production discontinuance.

Ambient Operating Temperature Range: General Use Type:-30 to 80 C (-20 to 180 F).

TIIS Flameproof Type, TIIS Intrinsically Safe Type: -10 to 60 C (14 to 140 F).

Process Connection: Refer to Measuring Element Specifications.

Electrical Connection: JIS G1/2 or 1/2 NPT female (TIIS Flameproof type is not available)

Approximate Weight: 9 kg (20 lb) excluding elements.
