YOKOGAWA ANR10S,ANR10D Models ANR10S, ANR10D ER Bus Node Unit (for FIO)
ER Bus Node Unit has an interface function that communicates the analog I/O signals and contact I/O signals of a field with a Field Control Unit (FCU), as well as a function that supplies power to the I/O Modules.
Power Supply
Voltage: 100-120 V AC, Frequency: 50/60 Hz
Voltage: 220-240 V AC, Frequency: 50/60 Hz
Voltage: 24 V DC Specify with Suffix Codes.
Electric Power Consumption
100-120 V AC: 200 VA, 120 W
220-240 V AC: 230 VA, 120 W
24 V DC: 5.5 A
Weight 10 kg (incl. 8 I/O Modules)

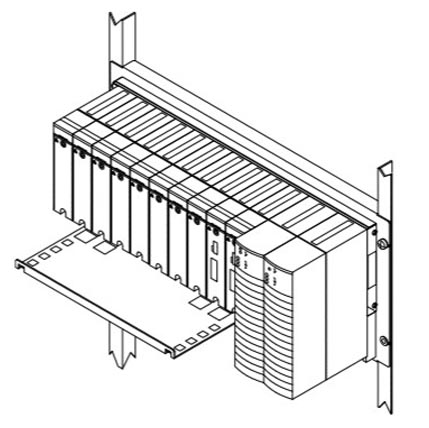

Mounting
19-inch Rack Mounting
Rack Mount (M5 x 4 screws)
Insulation bush (accessory)
MODELS AND SUFFIX CODES
Node Unit for Single ER Bus
Ordering Examples:
ANR10S-315
ANR10S-415
ANR10S-325
ANR10S-425
ANR10S-316
ANR10S-416
ANR10S-326
ANR10S-426
ANR10S-31E
ANR10S-41E
ANR10S-32E
ANR10S-42E
ANR10S-31F
ANR10S-41F
ANR10S-32F
ANR10S-42F
ANR10S-315/ATDOC
ANR10S-415/ATDOC
ANR10S-325/ATDOC
ANR10S-425/ATDOC
ANR10S-316/ATDOC
ANR10S-416/ATDOC
ANR10S-326/ATDOC
ANR10S-426/ATDOC
ANR10S-31E/ATDOC
ANR10S-41E/ATDOC
ANR10S-32E/ATDOC
ANR10S-42E/ATDOC
ANR10S-31F/ATDOC
ANR10S-41F/ATDOC
ANR10S-32F/ATDOC
ANR10S-42F/ATDOC
ANR10S-315/NDEL
ANR10S-415/NDEL
ANR10S-325/NDEL
ANR10S-425/NDEL
ANR10S-316/NDEL
ANR10S-416/NDEL
ANR10S-326/NDEL
ANR10S-426/NDEL
ANR10S-31E/NDEL
ANR10S-41E/NDEL
ANR10S-32E/NDEL
ANR10S-42E/NDEL
ANR10S-31F/NDEL
ANR10S-41F/NDEL
ANR10S-32F/NDEL
ANR10S-42F/NDEL
ANR10S-315/ATDOC/NDEL
ANR10S-415/ATDOC/NDEL
ANR10S-325/ATDOC/NDEL
ANR10S-425/ATDOC/NDEL
ANR10S-316/ATDOC/NDEL
ANR10S-416/ATDOC/NDEL
ANR10S-326/ATDOC/NDEL
ANR10S-426/ATDOC/NDEL
ANR10S-31E/ATDOC/NDEL
ANR10S-41E/ATDOC/NDEL
ANR10S-32E/ATDOC/NDEL
ANR10S-42E/ATDOC/NDEL
ANR10S-31F/ATDOC/NDEL
ANR10S-41F/ATDOC/NDEL
ANR10S-32F/ATDOC/NDEL
ANR10S-42F/ATDOC/NDEL
Old Ordering Examples:
ANR10S-310
ANR10S-410
ANR10S-320
ANR10S-420
ANR10S-311
ANR10S-411
ANR10S-321
ANR10S-421
ANR10S-310/ATDOC
ANR10S-410/ATDOC
ANR10S-320/ATDOC
ANR10S-420/ATDOC
ANR10S-311/ATDOC
ANR10S-411/ATDOC
ANR10S-321/ATDOC
ANR10S-421/ATDOC
ANR10S-310/NDEL
ANR10S-410/NDEL
ANR10S-320/NDEL
ANR10S-420/NDEL
ANR10S-311/NDEL
ANR10S-411/NDEL
ANR10S-321/NDEL
ANR10S-421/NDEL
ANR10S-310/ATDOC/NDEL
ANR10S-410/ATDOC/NDEL
ANR10S-325/ATDOC/NDEL
ANR10S-425/ATDOC/NDEL
ANR10S-316/ATDOC/NDEL
ANR10S-416/ATDOC/NDEL
ANR10S-326/ATDOC/NDEL
ANR10S-426/ATDOC/NDEL
Ordering Examples:
ANR10D-415
ANR10D-425
ANR10D-416
ANR10D-426
ANR10D-445
ANR10D-446
ANR10D-441E
ANR10D-44F
ANR10D-41E
ANR10D-42E
ANR10D-41F
ANR10D-42F
ANR10D-415/ATDOC
ANR10D-425/ATDOC
ANR10D-416/ATDOC
ANR10D-426/ATDOC
ANR10D-445/ATDOC
ANR10D-446/ATDOC
ANR10D-41E/ATDOC
ANR10D-42E/ATDOC
ANR10D-44E/ATDOC
ANR10D-41F/ATDOC
ANR10D-42F/ATDOC
ANR10D-44F/ATDOC
ANR10D-415/NDEL
ANR10D-425/NDEL
ANR10D-416/NDEL
ANR10D-426/NDEL
ANR10D-445/NDEL
ANR10D-446/NDEL
ANR10D-41E/NDEL
ANR10D-42E/NDEL
ANR10D-41F/NDEL
ANR10D-42F/NDEL
ANR10D-44E/NDEL
ANR10D-44F/NDEL
ANR10D-415/ATDOC/NDEL
ANR10D-425/ATDOC/NDEL
ANR10D-416/ATDOC/NDEL
ANR10D-426/ATDOC/NDEL
ANR10D-445/ATDOC/NDEL
ANR10D-446/ATDOC/NDEL
ANR10D-41E/ATDOC/NDEL
ANR10D-42E/ATDOC/NDEL
ANR10D-41F/ATDOC/NDEL
ANR10D-42F/ATDOC/NDEL
ANR10D-44E/ATDOC/NDEL
ANR10D-44F/ATDOC/NDEL
Old Ordering Examples:
ANR10D-310
ANR10D-410
ANR10D-320
ANR10D-420
ANR10D-311
ANR10D-411
ANR10D-321
ANR10D-421
ANR10D-310/ATDOC
ANR10D-410/ATDOC
ANR10D-320/ATDOC
ANR10D-420/ATDOC
ANR10D-311/ATDOC
ANR10D-411/ATDOC
ANR10D-321/ATDOC
ANR10D-421/ATDOC
ANR10D-310/NDEL
ANR10D-410/NDEL
ANR10D-320/NDEL
ANR10D-420/NDEL
ANR10D-311/NDEL
ANR10D-411/NDEL
ANR10D-321/NDEL
ANR10D-421/NDEL
ANR10D-310/ATDOC/NDEL
ANR10D-410/ATDOC/NDEL
ANR10D-325/ATDOC/NDEL
ANR10D-425/ATDOC/NDEL
ANR10D-316/ATDOC/NDEL
ANR10D-416/ATDOC/NDEL
ANR10D-326/ATDOC/NDEL
ANR10D-426/ATDOC/NDEL
Dummy Cover
|
|
Description |
|
Model |
ADCV01 |
Dummy Cover (for I/O Module) |
|
ADCV02 |
Dummy Cover (for Power Supply Module) |
Insulating Partition
|
|
|
Description |
|
Part No. |
T9083NA |
Insulating Partition |
ACCESSORIES AND SPARE PARTS
|
Parts Names |
Parts Numbers |
Qty |
Remarks |
|
Insulating bush |
S9049PM |
4 |
Accessory |
|
Accessory assembly |
S9768UK |
1 |
|
|
Accessory assembly |
S9768UK |
2 |
|
|
Clamp filter |
A1193MN |
2 |
|
|
Clamp filter |
A1193MN |
4 |
|
|
Content of S9768UK |
|
Coaxial connector |
A1120JA |
1 |
T junction |
|
Cover |
T9072MB |
1 |
|
|
Cover |
T9072MC |
1 |
|
