ANB11S,ANB11D

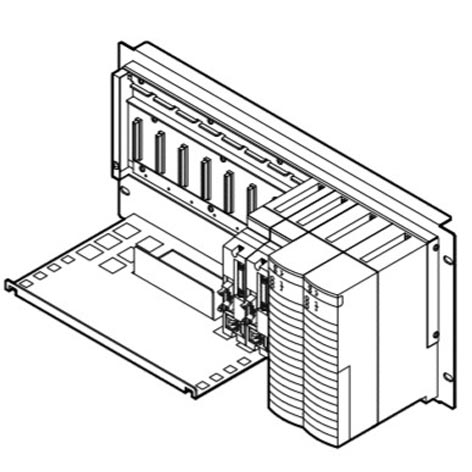

YOKOGAWA ANB11S, ANB11D
Optical ESB Bus Node Unit (for AFV30/AFV40)

This node unit collects and relays I/O signals from a remote location to a FCU. It is equipped with a function to convert field analog I/O signals and contact I/O signals to optical signals and transmit them to the FCU in a remote location via the optical ESB bus, as well as a function to supply power to the I/O modules. Also, this unit can transmit the environmental conditions of the cabinet via the optical ESB bus using the optional HKU (*1) interface and centrally monitor the environmental conditions of the connected cabinet on the FCU. *1: HKU stands for House Keeping Unit.


Connection of Optical ESB Bus Node Unit

This node unit is connected with Optical ESB Bus Repeater Master Module (ANT401 or ANT411) installed in the FCU (AFV30/AFV40), ESB Bus Node Unit (ANB10), and Unit for Optical ESB Bus Repeater Module (ANT10U) via the optical ESB bus.

To connect this node unit to the FCU via the optical ESB Bus, install ESB Bus Coupler Module (EC401 or EC402) in the FCU. And also install Optical ESB Bus Repeater Master Module (ANT401 or ANT411) in the FCU, ESB Bus Node Unit (ANB10), and Unit for Optical ESB Bus Repeater Module (ANT10U) depending on the connected system configuration. ESB Bus Coupler Module installs in slot 7 and 8 of the FCU. In a single configuration, install it in slot 7 and leave slot 8 empty.

Install a pair of Optical ESB Bus Repeater Master Module in slots 1 to 6 of the FCU in order from right to left according to the number of branches. In a single configuration, install it in an odd-numbered slot of the FCU from slot No. 5 and leave the slot on the right (e.g. slot No. 6) empty. For details, see the “Optical ESB Bus Repeater Module” (GS 33K50F51-50E/GS 33K50F52- 50E). 


HKU Interface (Option)

When option code /HU1A or /HU1B is specified, the environmental information of the cabinet can be transmitted to FCU via optical ESB bus. The FCU can monitor the connected cabinet’s environmental conditions and display HKU’s operating status on HIS. System alarms can also be displayed. 


Power Supply

Voltage: 100-120 V AC, Frequency: 50/60 Hz

Voltage: 220-240 V AC, Frequency: 50/60 Hz

Voltage: 24 V DC Specify with suffix codes

● Electric Power Consumption 100-120 V AC: 200 VA, 120 W 220-240 V AC: 230 VA, 120 W 24 V DC: 5.5 A, 120 W

● Weight 10 kg (incl. 8 I/O Modules)

● Mounting Type 19-inch Rack Mount (M5x4 screws) Insulation bush (accessory).


Models and Suffix Codes

Node Unit for Single ESB Bus with Optical Repeater


Ordering Examples:



ANB11S-125

ANB11S-225

ANB11S-325

ANB11S-425

ANB11S-115

ANB11S-215

ANB11S-315

ANB11S-415

ANB11S-145

ANB11S-245

ANB11S-345

ANB11S-445

ANB11S-126

ANB11S-226

ANB11S-326

ANB11S-426

ANB11S-116

ANB11S-216

ANB11S-316

ANB11S-416

ANB11S-146

ANB11S-246

ANB11S-346

ANB11S-446

ANB11S-125/BU1A/NDEL

ANB11S-115/BU1A /NDEL

ANB11S-145/BU1A /NDEL

ANB11S-126/BU1A /NDEL

ANB11S-116/BU1A /NDEL

ANB11S-146/BU1A /NDEL

Old Ordering Examples:

ANB11S-120

ANB11S-220

ANB11S-320

ANB11S-420

ANB11S-110

ANB11S-210

ANB11S-310

ANB11S-410

ANB11S-140

ANB11S-240

ANB11S-340

ANB11S-440

ANB11S-121

ANB11S-221

ANB11S-321

ANB11S-421

ANB11S-111

ANB11S-211

ANB11S-311

ANB11S-411

ANB11S-141

ANB11S-241

ANB11S-341

ANB11S-441

ANB11S-120/BU1A/NDEL

ANB11S-110/BU1A /NDEL

ANB11S-140/BU1A /NDEL

ANB11S-121/BU1A /NDEL

ANB11S-111/BU1A /NDEL

ANB11S-141/BU1A /NDEL





Ordering Examples:

ANB11D-225

ANB11D-215

ANB11D-415

ANB11D-425

ANB11D-245

ANB11D-445



ANB11D-216

ANB11D-226

ANB11D-416

ANB11D-426

ANB11D-246

ANB11D-446



ANB11D-22E

ANB11D-21E

ANB11D-41E

ANB11D-22F

ANB11D-42F

ANB11D-24F

ANB11D-44F



ANB11D-215/BU2A

ANB11D-415/BU2B

ANB11D-225/HU2A

ANB11D-425/HU2B

ANB11D-245/NDEL

ANB11D-445/ATDOC



ANB11D-216/BU2A/NDEL

ANB11D-416/BU2B /NDEL

ANB11D-226/HU2A/NDEL

ANB11D-426/HU2B/NDEL

ANB11D-215/BU2A/NDEL

ANB11D-415/BU2B /NDEL

ANB11D-225/HU2A/NDEL

ANB11D-425/HU2B/NDEL



Old Ordering Examples:

ANB11D-220

ANB11D-210

ANB11D-410

ANB11D-420

ANB11D-240

ANB11D-440



ANB11D-216

ANB11D-226

ANB11D-416

ANB11D-426

ANB11D-246

ANB11D-446



ANB11D-22E

ANB11D-21E

ANB11D-41E

ANB11D-22F

ANB11D-42F

ANB11D-24F

ANB11D-44F



ANB11D-210/BU2A

ANB11D-410/BU2B

ANB11D-220/HU2A

ANB11D-420/HU2B

ANB11D-240/NDEL

ANB11D-440/ATDOC



ANB11D-216/BU2A/NDEL

ANB11D-416/BU2B /NDEL

ANB11D-226/HU2A/NDEL

ANB11D-426/HU2B/NDEL

ANB11D-210/BU2A/NDEL

ANB11D-410/BU2B /NDEL

ANB11D-220/HU2A/NDEL

ANB11D-420/HU2B/NDEL

Dummy Cover

Description

Model

ADCV01

Dummy Cover (for I/O Module)

ADCV02

Dummy Cover (for Power Supply Module)


STANDARD ACCESSORIES

Parts Names

Parts Numbers

Description

Quantity

Remarks

Insulating bush

S9049PM

-

4

Accessory

#
