ANB10S, ANB10D

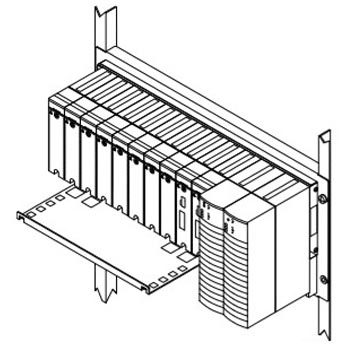

YOKOGAWA ANB10S, ANB10D ESB Bus Node Units (for FIO)


GENERAL

The ESB Bus Node Unit has an interface function that communicates the analog I/O signals and contact I/O signals of a field with a Field Control Unit (FCU) via an ESB bus, as well as a function that supplies power to the I/O Modules. This node units are connected to FCU via an ESB bus.



MODELS AND SUFFIX CODES

Node Unit for Single ESB Bus


Ordering Examples:

ANB10S-315

ANB10S-415

ANB10S-325

ANB10S-425

ANB10S-345

ANB10S-445

ANB10S-316

ANB10S-416

ANB10S-326

ANB10S-426

ANB10S-346

ANB10S-446

ANB10S-315/CU1N

ANB10S-415/CU1N

ANB10S-325/CU1N

ANB10S-425/CU1N

ANB10S-345/CU1N

ANB10S-445/CU1N

ANB10S-316/CU1N

ANB10S-416/CU1N

ANB10S-326/CU1N

ANB10S-426/CU1N

ANB10S-346/CU1N

ANB10S-446/CU1N

ANB10S-315/CU1T

ANB10S-415/CU1T

ANB10S-325/CU1T

ANB10S-425/CU1T

ANB10S-345/CU1T

ANB10S-445/CU1T

ANB10S-316/CU1T

ANB10S-416/CU1T

ANB10S-326/CU1T

ANB10S-426/CU1T

ANB10S-346/CU1T

ANB10S-446/CU1T

ANB10S-315/ATDOC

ANB10S-415/ATDOC

ANB10S-325/ATDOC

ANB10S-425/ATDOC

ANB10S-345/ATDOC

ANB10S-445/ATDOC

ANB10S-316/ATDOC

ANB10S-416/ATDOC

ANB10S-326/ATDOC

ANB10S-426/ATDOC

ANB10S-346/ATDOC

ANB10S-446/ATDOC

ANB10S-315/NDEL

ANB10S-415/NDEL

ANB10S-325/NDEL

ANB10S-425/NDEL

ANB10S-345/NDEL

ANB10S-445/NDEL

ANB10S-316/NDEL

ANB10S-416/NDEL

ANB10S-326/NDEL

ANB10S-426/NDEL

ANB10S-346/NDEL

ANB10S-446/NDEL

ANB10S-315/CU1N/NDEL

ANB10S-415/CU1N/NDEL

ANB10S-325/CU1N/NDEL

ANB10S-425/CU1N/NDEL

ANB10S-345/CU1N/NDEL

ANB10S-445/CU1N/NDEL

ANB10S-316/CU1N/NDEL

ANB10S-416/CU1N/NDEL

ANB10S-326/CU1N/NDEL

ANB10S-426/CU1N/NDEL

ANB10S-346/CU1N/NDEL

ANB10S-446/CU1N/NDEL

ANB10S-315/CU1T/NDEL

ANB10S-415/CU1T/NDEL

ANB10S-325/CU1T/NDEL

ANB10S-425/CU1T/NDEL

ANB10S-345/CU1T/NDEL

ANB10S-445/CU1T/NDEL

ANB10S-316/CU1T/NDEL

ANB10S-416/CU1T/NDEL

ANB10S-326/CU1T/NDEL

ANB10S-426/CU1T/NDEL

ANB10S-346/CU1T/NDEL

ANB10S-446/CU1T/NDEL


Old Ordering Examples:


ANB10S-310

ANB10S-410

ANB10S-320

ANB10S-420

ANB10S-340

ANB10S-440

ANB10S-311

ANB10S-411

ANB10S-321

ANB10S-421

ANB10S-341

ANB10S-441

ANB10S-310/CU1N

ANB10S-410/CU1N

ANB10S-320/CU1N

ANB10S-420/CU1N

ANB10S-340/CU1N

ANB10S-440/CU1N

ANB10S-311/CU1N

ANB10S-411/CU1N

ANB10S-321/CU1N

ANB10S-421/CU1N

ANB10S-341/CU1N

ANB10S-441/CU1N

ANB10S-310/CU1T

ANB10S-410/CU1T

ANB10S-320/CU1T

ANB10S-420/CU1T

ANB10S-340/CU1T

ANB10S-440/CU1T

ANB10S-311/CU1T

ANB10S-411/CU1T

ANB10S-321/CU1T

ANB10S-421/CU1T

ANB10S-341/CU1T

ANB10S-441/CU1T

ANB10S-310/ATDOC

ANB10S-410/ATDOC

ANB10S-320/ATDOC

ANB10S-420/ATDOC

ANB10S-340/ATDOC

ANB10S-440/ATDOC

ANB10S-311/ATDOC

ANB10S-411/ATDOC

ANB10S-321/ATDOC

ANB10S-421/ATDOC

ANB10S-341/ATDOC

ANB10S-441/ATDOC

ANB10S-310/NDEL

ANB10S-410/NDEL

ANB10S-320/NDEL

ANB10S-420/NDEL

ANB10S-340/NDEL

ANB10S-440/NDEL

ANB10S-311/NDEL

ANB10S-411/NDEL

ANB10S-321/NDEL

ANB10S-421/NDEL

ANB10S-341/NDEL

ANB10S-441/NDEL

ANB10S-310/CU1N/NDEL

ANB10S-410/CU1N/NDEL

ANB10S-320/CU1N/NDEL

ANB10S-420/CU1N/NDEL

ANB10S-340/CU1N/NDEL

ANB10S-440/CU1N/NDEL

ANB10S-311/CU1N/NDEL

ANB10S-411/CU1N/NDEL

ANB10S-321/CU1N/NDEL

ANB10S-421/CU1N/NDEL

ANB10S-341/CU1N/NDEL

ANB10S-441/CU1N/NDEL

ANB10S-310/CU1T/NDEL

ANB10S-410/CU1T/NDEL

ANB10S-320/CU1T/NDEL

ANB10S-420/CU1T/NDEL

ANB10S-340/CU1T/NDEL

ANB10S-440/CU1T/NDEL

ANB10S-311/CU1T/NDEL

ANB10S-411/CU1T/NDEL

ANB10S-321/CU1T/NDEL

ANB10S-421/CU1T/NDEL

ANB10S-341/CU1T/NDEL

ANB10S-441/CU1T/NDEL


Node Unit for Dual-Redundant ESB Bus


Ordering Examples:

ANB10D-415

ANB10D-425

ANB10D-445

ANB10D-416

ANB10D-426

ANB10D-446

ANB10D-415/CU2N

ANB10D-425/CU2N

ANB10D-445/CU2N

ANB10D-416/CU2N

ANB10D-426/CU2N

ANB10D-446/CU2N

ANB10D-415/CU2T

ANB10D-425/CU2T

ANB10D-445/CU2T

ANB10D-416/CU2T

ANB10D-426/CU2T

ANB10D-446/CU2T

ANB10D-415/ATDOC

ANB10D-425/ATDOC

ANB10D-445/ATDOC

ANB10D-416/ATDOC

ANB10D-426/ATDOC

ANB10D-446/ATDOC

ANB10D-415/NDEL

ANB10D-425/NDEL

ANB10D-445/NDEL

ANB10D-416/NDEL

ANB10D-426/NDEL

ANB10D-446/NDEL

ANB10D-415/CU2N/NDEL

ANB10D-425/CU2N/NDEL

ANB10D-445/CU2N/NDEL

ANB10D-416/CU2N/NDEL

ANB10D-426/CU2N/NDEL

ANB10D-446/CU2N/NDEL

ANB10D-415/CU2T/NDEL

ANB10D-425/CU2T/NDEL

ANB10D-445/CU2T/NDEL

ANB10D-416/CU2T/NDEL

ANB10D-426/CU2T/NDEL

ANB10D-446/CU2T/NDEL


Old Ordering Examples:


ANB10D-410

ANB10D-420

ANB10D-440

ANB10D-411

ANB10D-421

ANB10D-441

ANB10D-410/CU2N

ANB10D-420/CU2N

ANB10D-440/CU2N

ANB10D-411/CU2N

ANB10D-421/CU2N

ANB10D-441/CU2N

ANB10D-410/CU2T

ANB10D-420/CU2T

ANB10D-440/CU2T

ANB10D-411/CU2T

ANB10D-421/CU2T

ANB10D-441/CU2T

ANB10D-410/ATDOC

ANB10D-420/ATDOC

ANB10D-440/ATDOC

ANB10D-411/ATDOC

ANB10D-421/ATDOC

ANB10D-441/ATDOC

ANB10D-410/NDEL

ANB10D-420/NDEL

ANB10D-440/NDEL

ANB10D-411/NDEL

ANB10D-421/NDEL

ANB10D-441/NDEL

ANB10D-410/CU2N/NDEL

ANB10D-420/CU2N/NDEL

ANB10D-440/CU2N/NDEL

ANB10D-411/CU2N/NDEL

ANB10D-421/CU2N/NDEL

ANB10D-441/CU2N/NDEL

ANB10D-410/CU2T/NDEL

ANB10D-420/CU2T/NDEL

ANB10D-440/CU2T/NDEL

ANB10D-411/CU2T/NDEL

ANB10D-421/CU2T/NDEL

ANB10D-441/CU2T/NDEL

Dummy Cover

Model

Description

ADCV01

Dummy

ADCV02

Dummy


Insulating Partition

Part No.

Description

T9083NA

Insulating Partition


ACCESSORIES AND SPARE PARTS

Parts Names

Parts Numbers

Description

Quantity

Remarks

Insulating bush

S9049PM

-

4

Accessory


ORDERING INFORMATION

 Specify the model and suffix codes


HARDWARE SPECIFICATION

The ESB Bus Node Unit has an interface function that communicates the analog I/O signals and contact I/O signals of a field with a Field Control Unit (FCU) via an ESB bus, as well as a function that supplies power to the I/O Modules. This node units are connected to FCU via an ESB bus.


ESB Bus Node Connection

When connecting an ESB Bus Node Unit to FCU, install ESB Bus Coupler Module (EC401 or EC402) to FCU (*1).

EC401 or EC402 must be installed in slot 7 and slot 8. To make single configuration, EC401 or EC402 must be installed in slot 7, and Slot 8 must be empty.

EC402 can be installed in AFV30 or AFV40. *1: AFV30, AFV40, AFV10, or AFF55.


Power Supply

Specify with Suffix Codes

Voltage: 100-120 V AC, Frequency: 50/60 Hz

Voltage: 220-240 V AC, Frequency: 50/60 Hz

Voltage: 24 V DC


Electric Power Consumption

 100-120 V AC: 200 VA, 120 W

 220-240 V AC: 230 VA, 120 W

 24 V DC:  5.5 A


Weight
10 kg (incl. 8 I/O Modules)

Mounting

19-inch Rack Mounting

Rack mount (M5 x 4 screws)

Insulation bash (accessory


CONFIGURATION

Module configuration Power Supply Module (PW481 or PW482 or PW484):  Two modules in case of a dual-redundant configuration.

Power supply to the I/O Modules, and supply power to the transmitters.

The power supply terminals use M4 screws.

ESB Bus Interface Slave Module (SB401):  Two modules in case of a dual-redundant configuration. I/O Modules: Max.8


LIMITATIONS OF INSTALLATION AND NOTICES FOR INSTALLATION

 For installing I/O modules in node unit, the quantity and allocation are limited.  Also, when installing a node unit to the dedicated cabinet, there are limitations of installation under the ambient operating temperature conditions. When modules with built-in barriers are installed in any node unit, an insulating partition (Part No. T9083NA) must be installed.

#
