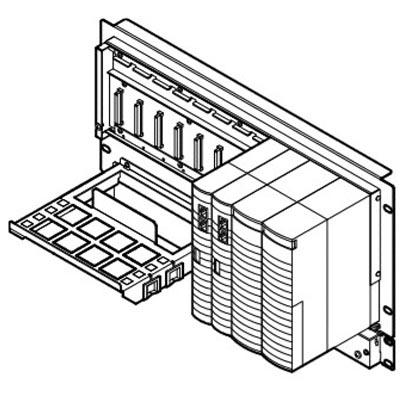

YOKOGAWA AFV30S, AFV30D Field Control Unit Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable Type)
GENERAL
This GS covers the hardware specifications of the Field Control Unit (FCU) which is the core of the control function of the Field Control Station (FCS).
Attention: These products are subject to the Export Administration Regulations (EAR) by the United States Department of Commerce, Bureau of Industry and Security (BIS). It is not possible to export or reexport these products to Iran, Cuba, North Korea, Syria, and Sudan.
MODELS AND SUFFIX CODES
Field Control Unit
Ordering Examples:
AFV30S-S31151
AFV30S-S41151
AFV30S-S31251
AFV30S-S41251
AFV30S-S31451
AFV30S-S41451
AFV30S-S31161
AFV30S-S41161
AFV30S-S31261
AFV30S-S41261
AFV30S-S31461
AFV30S-S41461
AFV30S-S311E1
AFV30S-S411E1
AFV30S-S312E1
AFV30S-S412E1
AFV30S-S314E1
AFV30S-S414E1
AFV30S-S311F1
AFV30S-S411F1
AFV30S-S312F1
AFV30S-S412F1
AFV30S-S314F1
AFV30S-S414F1
AFV30S-S31151/HKU
AFV30S-S41151/HKU
AFV30S-S31251/HKU
AFV30S-S41251/HKU
AFV30S-S31451/HKU
AFV30S-S41451/HKU
AFV30S-S31161/HKU
AFV30S-S41161/HKU
AFV30S-S31261/HKU
AFV30S-S41261/HKU
AFV30S-S31461/HKU
AFV30S-S41461/HKU
AFV30S-S311E1/ATDOC
AFV30S-S411E1/ATDOC
AFV30S-S312E1/ATDOC
AFV30S-S412E1/ATDOC
AFV30S-S314E1/ATDOC
AFV30S-S414E1/ATDOC
AFV30S-S311F1/HKU /ATDOC
AFV30S-S411F1/HKU /ATDOC
AFV30S-S312F1/HKU /ATDOC
AFV30S-S412F1/HKU /ATDOC
AFV30S-S314F1/HKU /ATDOC
AFV30S-S414F1/HKU /ATDOC
Old Ordering Examples:
AFV30S-S31101
AFV30S-S41101
AFV30S-S31201
AFV30S-S41201
AFV30S-S31401
AFV30S-S41401
AFV30S-S31111
AFV30S-S41111
AFV30S-S31211
AFV30S-S41211
AFV30S-S31411
AFV30S-S41411
AFV30S-S31101/HKU
AFV30S-S41101/HKU
AFV30S-S31201/HKU
AFV30S-S41201/HKU
AFV30S-S31401/HKU
AFV30S-S41401/HKU
AFV30S-S31111/HKU
AFV30S-S41111/HKU
AFV30S-S31211/HKU
AFV30S-S41211/HKU
AFV30S-S31411/HKU
AFV30S-S41411/HKU
Duplexed Field Control Unit
Ordering Examples:
AFV30D-S41151
AFV30D-S41251
AFV30D-S41451
AFV30D-S41161
AFV30D-S41261
AFV30D-S41461
AFV30D-S411E1
AFV30D-S412E1
AFV30D-S414E1
AFV30D-S411F1
AFV30D-S412F1
AFV30D-S414F1
AFV30D-S41151/HKU
AFV30D-S41251/HKU
AFV30D-S41451/HKU
AFV30D-S41161/HKU
AFV30D-S41261/HKU
AFV30D-S41461/HKU
AFV30D-S411E1/ATDOC
AFV30D-S412E1/ATDOC
AFV30D-S414E1/ATDOC
AFV30D-S411F1/HKU /ATDOC
AFV30D-S412F1/HKU /ATDOC
AFV30D-S414F1/HKU /ATDOC
Old Ordering Examples:
AFV30S-S31101
AFV30S-S41101
AFV30S-S31201
AFV30S-S41201
AFV30S-S31401
AFV30S-S41401
AFV30S-S31111
AFV30S-S41111
AFV30S-S31211
AFV30S-S41211
AFV30S-S31411
AFV30S-S41411
AFV30D-S41101/HKU
AFV30D-S41201/HKU
AFV30D-S41401/HKU
AFV30D-S41111/HKU
AFV30D-S41211/HKU
AFV30D-S41411/HKU
AFV30D-S41101/ATDOC
AFV30D-S41201/ATDOC
AFV30D-S41401/ATDOC
AFV30D-S41111/ATDOC
AFV30D-S41211/ATDOC
AFV30D-S41411/ATDOC
AFV30D-S41101/HKU/ATDOC
AFV30D-S41201/HKU/ATDOC
AFV30D-S41401/HKU/ATDOC
AFV30D-S41111/HKU/ATDOC
AFV30D-S41211/HKU/ATDOC
AFV30D-S41411/HKU/ATDOC
ORDERING INFORMATION
Specify model and suffix codes
HARDWARE SPECIFICATIONS
Processor: VR5532 (350 MHz)
Main Memory Capacity: 128 MB
Memory Protection During Power Failure
Battery
Battery Back-up for Main Memory: Max. 72 hours
Battery Recharge Time: Min. 48 hours
FCU Status Contact Output
2 terminals (NC, C)
Contact Points open during FCU failure
Contact Rating: 30 V DC, max. 0.3 A
Note: When option code /HKU is specified, a FCU fault contact is output from the House Keeping Unit (HKU).
Communication Interface Vnet/IP Interface: Dual-redundant
HKU Interface (Option): When option code /HKU is specified, a FCU fault contact is output from the HKU. Also, the environmental conditions of the cabinet connected via the HK bus and optical ESB bus can be monitored and the operating status of the HKU can be displayed on the HIS. System alarms can also be displayed
No. of Node Units Connectable
Max. 13/FCU
The total number of ESB Bus Node Units (ANB10) and Optical ESB Bus Node Units (ANB11) that can be connected to FCU are 13 or less. The ER Bus Node Unit (ANR10) cannot be connected.
The Control function for field control station (LFS1700) allows up to 3, and can be expanded as follows by adding the Node Expansion Package (LFS1750).
LFS1750-V1: Max. 9/FCU
LFS1750-V2: Max. 13/FCU
To connect a node unit to the FCU, a Node Unit Expansion License (option code: /NDEL) is required for the node unit.
Module Configuration
Power Supply Module (PW481 or PW482 or PW484): 2 modules for dual-redundant configuration Processor Module (CP461): 2 modules for dual- redundant configuration I/O Module (*1): Max. 8 *1: Non-standard component.
Installation Restrictions
To connect the ESB Bus Node Unit (ANB10) or Optical ESB Bus Node Unit (ANB11) to the FCU, install the ESB Bus Coupler Module (EC401 or EC402) in slots 7 and 8 of the FCU. For the dual-redundant configuration of the processor modules, EC401 or EC402 must be installed in both slot 7 and slot 8. In case ESB Bus has a single configuration, EC401 or EC402 must be installed in slot 7 and keep slot 8 empty.
To install the optical ESB bus node unit and ESB bus node unit in a remote location, use the Optical ESB Bus Repeater Master Module (ANT401 or ANT411) to connect them with an optical fiber cable. To install the optical ESB bus repeater master module in the FCU, install a pair of modules in slots 1 to 6 in order from right to left according to the number of branches. In a single configuration, install the individual modules in slots 1, 3, and 5 in order from right to left
Power Supply
Voltage: 100-120 V AC, Frequency: 50/60 Hz
Voltage: 220-240 V AC, Frequency: 50/60 Hz
Voltage: 24 V DC
Specify with the Suffix Code
Power Consumption
100-120 V AC: 200 VA
220-240 V AC: 230 VA
24 V DC: 5.5
Weight
Approx. 7 kg (AFV30S)
Approx. 8 kg (AFV30D
Mounting
19-inch Rack Mounting:
Rack mount (M5x8 screws)
Insulation bush (accessory
Connection
Power Supply: M4 screw terminal connection
Grounding: M4 screw terminal connection
FCU Status Contact Output: M4 screw terminal connection
Network: Connect UTP cable (CAT5e or better) to Layer 2 switch.
Regulatory Compliance
Safety Standards
[CSA] (for 100-120 V AC power supply)
[CE Marking] (for 100-120 V AC, 220-240 V AC and 24 V DC power supply)
EMC Conformity Standards
[CE Marking] (for 100-120 V AC, 220-240 V AC and 24 V DC power supply)
[C-Tick Marking] (for 220-240 V AC and 24 V DC power supply)
[KC Marking] (for 100-120 V AC, 220-240 V AC and 24 V DC power supply)
Standards for Hazardous Location Equipment
[FM Non-Incendive] (for 100-120 V AC, 220-240 V AC and 24 V DC power supply)
[Type n] (for 24 V DC power supply)
System Configuration
This is a configuration example of an FCU and node units, and an ESB bus (including optical ESB bus) that connects them.
LIMITATIONS OF INSTALLATION AND NOTICES FOR INSTALLATION
For installing I/O modules in AFV30S or AFV30D, the quantity and allocation are limited. Also, when installing a node unit to the dedicated cabinet, there are limitations of installation under the ambient operating temperature conditions. When modules with built-in barriers are installed in AFV30, an insulating partition kit (Part No. T9083ND) must be installed.
EXTERNAL DIMENSIONS
SOFTWARE REQUIREMENT
For AFV30S and AFV30D, the Control Function for Field Control Station (LFS1700) is required. Specify this control function with the suffix code. The number of the connectable node units and the application capacity can be expanded if the Node Expansion Package (LFS1750) is purchased.
REQUIREMENTS FOR USING SEM (Sequence of Events Manager
For using SEM, the hardware requires some conditions
STANDARD ACCESSORIES
Parts Names |
Parts Numbers |
Description |
Quantity |
Remarks |
Insulating bush |
S9049PM |
- |
8 |
Accessory |
The FCU is delivered with the following standard accessories
