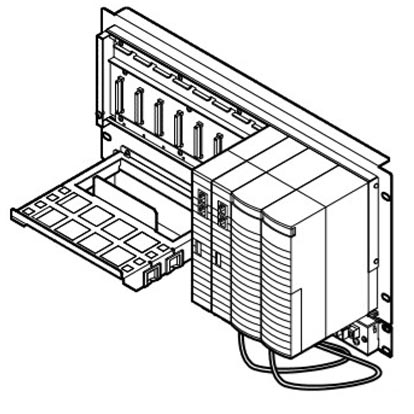

YOKOGAWA AFV10S, AFV10D Field Control Unit Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable Type (19-inch Rack Mountable Type FCU)
GENERAL
This GS covers the hardware specifications of the Field Control Unit (FCU) which is the core of the control function of the Field Control Station (FCS).
MODELS AND SUFFIX CODES
Field Control Unit
Ordering Examples:
AFV10S-S31151
AFV10S-S41151
AFV10S-S31251
AFV10S-S41251
AFV10S-S31451
AFV10S-S41451
AFV10S-S31161
AFV10S-S41161
AFV10S-S31261
AFV10S-S41261
AFV10S-S31461
AFV10S-S41461
AFV10S-S311E1
AFV10S-S411E1
AFV10S-S312E1
AFV10S-S412E1
AFV10S-S314E1
AFV10S-S414E1
AFV10S-S311F1
AFV10S-S411F1
AFV10S-S312F1
AFV10S-S412F1
AFV10S-S314F1
AFV10S-S414F1
AFV10S-S31151/ATDOC
AFV10S-S41151/ATDOC
AFV10S-S31251/ATDOC
AFV10S-S41251/ATDOC
AFV10S-S31451/ATDOC
AFV10S-S41451/ATDOC
AFV10S-S31161/ATDOC
AFV10S-S41161/ATDOC
AFV10S-S31261/ATDOC
AFV10S-S41261/ATDOC
AFV10S-S31461/ATDOC
AFV10S-S41461/ATDOC
AFV10S-S311E1/ATDOC
AFV10S-S411E1/ATDOC
AFV10S-S312E1/ATDOC
AFV10S-S412E1/ATDOC
AFV10S-S314E1/ATDOC
AFV10S-S414E1/ATDOC
AFV10S-S311F1/ATDOC
AFV10S-S411F1/ATDOC
AFV10S-S312F1/ATDOC
AFV10S-S412F1/ATDOC
AFV10S-S314F1/ATDOC
AFV10S-S414F1/ATDOC
Old Ordering Examples:
AFV10S-S31101
AFV10S-S41101
AFV10S-S31201
AFV10S-S41201
AFV10S-S31401
AFV10S-S41401
AFV10S-S31111
AFV10S-S41111
AFV10S-S31211
AFV10S-S41211
AFV10S-S31411
AFV10S-S41411
AFV10S-S31101/ATDOC
AFV10S-S41101/ATDOC
AFV10S-S31201/ATDOC
AFV10S-S41201/ATDOC
AFV10S-S31401/ATDOC
AFV10S-S41401/ATDOC
AFV10S-S31111/ATDOC
AFV10S-S41111/ATDOC
AFV10S-S31211/ATDOC
AFV10S-S41211/ATDOC
AFV10S-S31411/ATDOC
AFV10S-S41411/ATDOC
Duplexed Field Control Unit
Ordering Examples:
AFV10D-S41151
AFV10D-S41251
AFV10D-S41451
AFV10D-S41161
AFV10D-S41261
AFV10D-S41461
AFV10D-S411E1
AFV10D-S412E1
AFV10D-S414E1
AFV10D-S411F1
AFV10D-S412F1
AFV10D-S414F1
AFV10D-S41151/ATDOC
AFV10D-S41251/ATDOC
AFV10D-S41451/ATDOC
AFV10D-S41161/ATDOC
AFV10D-S41261/ATDOC
AFV10D-S41461/ATDOC
AFV10D-S411E1/ATDOC
AFV10D-S412E1/ATDOC
AFV10D-S414E1/ATDOC
AFV10D-S411F1/ATDOC
AFV10D-S412F1/ATDOC
AFV10D-S414F1/ATDOC
Old Ordering Examples:
AFV10D-S41101
AFV10D-S41201
AFV10D-S41401
AFV10D-S41111
AFV10D-S41211
AFV10D-S41411
AFV10D-S41101/ATDOC
AFV10D-S41201/ATDOC
AFV10D-S41401/ATDOC
AFV10D-S41111/ATDOC
AFV10D-S41211/ATDOC
AFV10D-S41411/ATDOC
Insulating Partition Kit
|
|
|
Description |
|
Part No. |
T9083ND |
Insulating Partition Kit |
Configuration of Insulating Partition Ki
|
|
|
Description |
|
Part No. |
T9083NE |
Insulating Partition |
|
T9083NG |
Insulating Partition for V net |
|
Y9306LB |
2 screws for T9083NG |
ORDERING INFORMATION
Specify model and suffix codes.
HARDWARE SPECIFICATIONS
For the installation specifications and the environmental conditions common to the systems, refer to “Vnet/IP System Overview (Vnet/IP Edition)” .
Processor VR5432 (133 MHz)
Main Memory Capacity 32 Mbyte
Memory Protection During Power Failure
Battery
Battery Back-up for Main Memory: Max. 72 hours
Battery Recharge Time: Min. 48 hours
FCU Status Contact Output
2 terminals (NC, C)
Contact Points open during FCU failure
Contact Rating: 30 V DC, max. 0.3 A
Communication Interface
Vnet/IP Interface: Dual-redundant
For more details, refer to “Integrated Production Control System CENTUM VP System Overview (Vnet/IP Edition)”.
No. of Node Units Connectable
Max. 14/FCU The total number of ESB Bus Node Units and ER Bus Node Units that can be connected to FCU are 14 or less. (ESB Bus Node Units: 9 or less) LFS1500 allows up to 3 nodes, and can be expanded to 14 if LFS1550 Application capacity Expansion Package (for AFV10) is added. To connect a node unit to the FCU, a Node Unit Expansion License (Option code: /NDEL) is required for the node unit.
Module configuration
Power Supply Module (PW481 or PW482 or PW484): Two modules in case of a dual-redundant configuration. Processor Module (CP451): Two modules in case of a dual-redundant configuration.
I/O Modules(*1): Max. 8 *1: Non-standard components.
ESB Bus Node Units Connection
When connecting an ESB Bus Node Unit to FCU, install ESB Bus Coupler Module (EC401) on FCU. EC401 must be installed in slot 7 and slot 8. For the dual-redundant configuration of the processor modules, EC401 must be installed in both slot 7 and slot 8. In case ESB Bus has a single configuration, EC401 must be installed in slot 7 and keep slot 8 empty.
ER Bus Node Units Connection
When connecting an ER Bus Node Unit to FCU, install ER Bus Interface Master Module (EB401) on FCU. To make single configuration, EB401 must be installed in an odd-number slot, and keep empty the right side of the installed EB401. See “ER Bus Interface Master Module (for FIO)” for further information.
Power Supply:
Voltage : 100-120 V AC, Frequency: 50/60 Hz
Voltage: 220-240 V AC, Frequency: 50/60 Hz
Voltage: 24 V DC Specify with Suffix Codes
Power Consumption
100-120 V AC: 200 VA
220-240 V AC: 230 VA
24 V DC: 5.5 A
Weight
Approx. 7 kg (AFV10S)
Approx. 8 kg (AFV10D
Mounting
19-inch Rack Mounting:
Rack mount (8 x M5 screws)
Insulation bush (accessory
Connection
Power Supply: M4 screw terminal connection
Grounding: M4 screw terminal connection
Contact Output: M4 screw terminal connection
Network: Connect UTP cable (CAT5e or better) to Layer 2 switch.
SOFTWARE REQUIREMENT
For AFV10S and AFV10D, the Control Function for Field Control Station (LFS1500) is required. Specify these control functions with suffix codes. The number of the connectable node units and the application capacity can be expanded if the Node Expansion Package (LFS1550) is purchased.
REQUIREMENTS FOR USING SEM (SEQUENCE OF EVENTS MANAGER)
To use SEM for Vnet/IP, AFV10 should be style 2 or later. (Style No. is indicated on the component tag
ACCESSORIES AND SPARE PARTS
The spare parts listed below are provided with the FCU
|
Parts Names |
Parts Numbers |
Description |
Quantity |
Remarks |
|
Insulating bush |
S9049PM |
|
8 |
Accessory |
