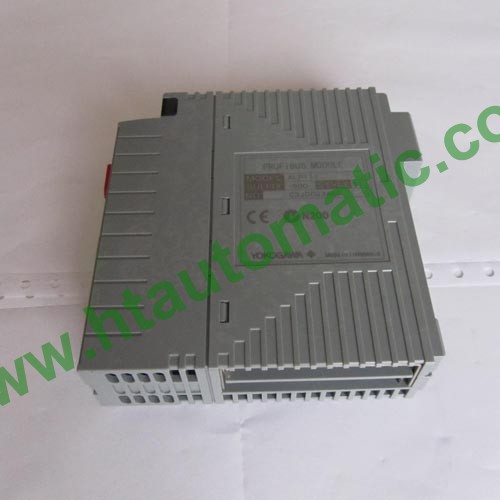

YOKOGAWA ALP111 PROFIBUS-DP Communication Module (for FIO)
MODEL AND SUFFIX CODES
|
|
|
Description |
|
Model |
ALP111 |
PROFIBUS-DP Communication Module |
|
Suffix
Codes |
-S |
Standard type |
|
0 |
Always 0 |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
Ordering Examples:
ALP111-S00
ALP111-S01
ORDERING INFORMATION
Specify model and suffix codes.
GENERAL
This document describes about Model ALP111 PROFIBUS-DP Communication Module (for FIO) which performs
as the PROFIBUS-DP master device to communicate and exchange data with PROFIBUS-DP slave devices. This PROFIBUS-DP communication module can be mounted on field control units (AFV30, AFV40, AFV10, and AFF50), ESB bus node unit (ANB10), optical ESB bus node unit (ANB11), and ER bus node unit (ANR10).
ALP111 module has been certified by PROFIBUS Nutzerorganisation e.V. as complying with the PROFIBUS DP-V0.
HARDWARE SPECIFICATIONS
Hardware specifications for ALP111 PROFIBUS-DP communication module are as shown below.
Hardware Specifications
|
Item |
Specifications |
|
Model |
ALP111 |
|
Interface |
PROFIBUS-DP |
|
Connection method |
EIA-RS-485-compliant |
|
Signal isolation |
Isolated |
|
Transmission speed |
9600 bps to 12 Mbps |
|
Transmission route |
Shielded |
|
Maximum transmission distance |
1.2 km per segment (at the communication speed of 9600 bps). |
|
No. of communication port |
One port (*1) |
|
Communication port |
D-sub 9 pin (female) (*2) |
|
Maintenance port |
D-sub 9 pin (male), Interface: RS-232C |
|
Maximum current consumption |
0.7 A |
|
Weight |
0.3 kg |
Note: The cables and terminators must comply with PROFIBUS-DP standards (PROFIBUS Specifications IEC 61158-2/EN
50170 volume 2).
*1: There is another port for maintenance.
*2: PROFIBUS-DP connector must comply with the PROFIBUS-Specificaiton-Normative-parts-2.
OPERATING ENVIRONMENT
Hardware Requirements
The PROFIBUS-DP communication module runs on the following FCS. AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, AFV10D,
AFG30S, AFG30D, AFG40S, AFG40D,
AFG81S, AFG81D, AFG82S, AFG82, AFG83S, AFG83D, AFG84S, AFG84D, AFF50S, AFF50D
Software Requirements
The PROFIBUS-DP communication module runs on the control functions of the following FCS.
LFS1700 Control Function for Field Control Station (for AFV30/AFV40, Vnet/IP and FIO):
for AFV30/AFV40
LFS1500 Control Function for Field Control Station (for AFV10, Vnet/IP and FIO): for AFV10
LSF1330 Control Function for Enhanced Field Control Station (for V net and FIO):
for AFG30/AFG40/AFG8
LFS1350 Control Function for Compact Field Control Station (for V net and FIO): for AFF50
Engineering Requirements
Works on LHS5100/LHMS5100 Standard Builder Function.
PROFIBUS-DP System Configurator
Combinations of SyCon–PB/YOKO version and the Windows OS are as shown below. Windows XP (32 bits): V2.881 or later
Windows Vista (32 bits): V2.953 or later
Windows 7 (64 bits): V2.959 or later
PROFIBUS Communication Specifications
Communication with PROFIBUS Devices
The PROFIBUS-DP device data is stored in the communication modules’ I/O image area. FCS accesses the communication module asynchronously from them, and refers to or sets the I/O images. This enables FCS to use the PROFIBUS-DP device data through the I/O terminals of the function block in the same way as the general analog and digital I/O signals.
