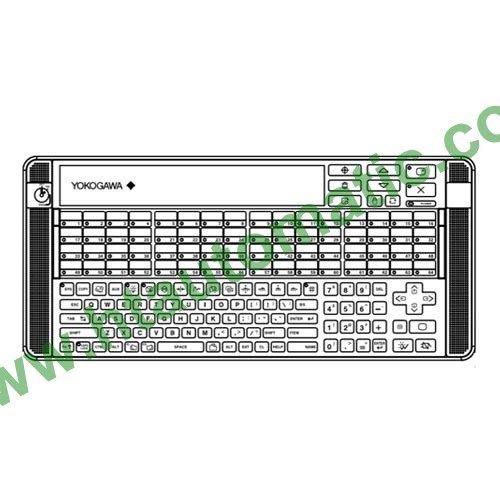

YOKOGAWA AIP830 Operation Keyboard for Single-loop Operation
GENERAL
This document describes the hardware specifications of AIP830 Operation Keyboard for Single-loop Operation for
Desktop Type HIS.
It contains an independent USB speaker (a sound function) other than buzzing alarms (buzzer sounds).
MODEL AND SUFFIX CODES
|
|
|
Description |
|
Model |
AIP830 |
Operation Keyboard for Single-loop Operation |
|
Suffix Codes |
-0 |
Without Mode selection switch |
|
-1 |
With Mode selection switch |
|
0 |
Operation confirmation key Type A |
|
1 |
Operation confirmation key Type B |
|
1 |
Always 1 |
|
Option Codes |
/VESA |
With VESA Bracket |
|
/EIM |
With English Instruction Manual |
|
/JIM |
With Japanese Instruction Manual |
Ordering Examples:
AIP830-001
AIP830-101
AIP830-011
AIP830-111
AIP830-001/VESA
AIP830-101/VESA
AIP830-011/VESA
AIP830-111/VESA
AIP830-001/EIM
AIP830-101/EIM
AIP830-011/EIM
AIP830-111/EIM
AIP830-001/VESA /EIM
AIP830-101/VESA /EIM
AIP830-011/VESA /EIM
AIP830-111/VESA /EIM
HARDWARE SPECIFICATIONS
• Type: Flat keyboard (Sound Function: USB Speaker)
• PC Interface:
Interface Connector: USB A type x 2 (*1) Conformable USB standard
Operation Keyboard Function : USB 2.0 (Full-speed, Bus-powered) Sound Function : USB 1.1 (Full-speed, Bus-powered)
• Input Voltage: 5 V±5 % (Supplied from USB Port of PC)
• Maximum Consumption Current: 1 A
• Weight: 2.0kg (Without VESA Bracket), 2.5 kg (With VESA Braceket) (*2)
• Chassis Color: Black (Equivalent to Munsell No. N1.5)
• AIP830 belongs to IEC 61010-1 installation category Class I
(A device not directly connected with the main power supply).
• Operating Environment
Temperature
5 to 40 °C (for normal operaiton)
-20 to 60 °C (in storage and transportation) Humidity (Non-condensing)
20 to 80 %RH
ORDERING INFORMATION
Specify the model and suffix codes.
