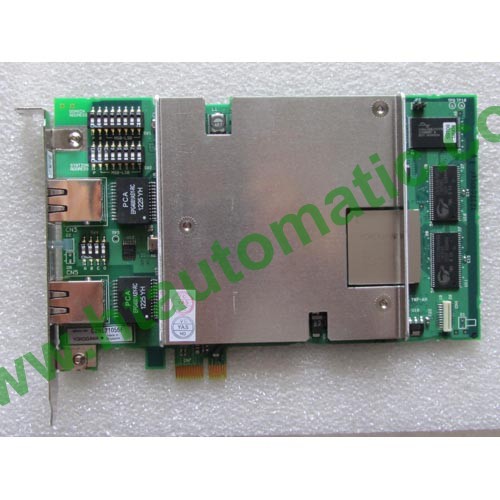

YOKOGAWA VI702 Vnet/IP Interface Card

GENERAL

By installing the control bus interface card into the PCI Express slot of the PC/AT compatible computer, the computer is connected to Vnet/IP.

FUNCTION

Interface between the PCI Express and Vnet/IP

SPECIFICATIONS

For conforming standards of the CENTUM VP system, see “System Overview (Vnet/IP Edition)”

Communication Speed

1 Gbps Full Duplex

Connection Specifications

Cable:  CAT5e (Enhanced Category 5 cable), UTP Transmission:  1000BASE-T compliance

Connector: RJ45 connector Max. distance: 100 m (Distance between VI702 and Layer 2 switch)

Voltage

Power supply voltage: 3.3 V ± 9 %

Current Consumption

Max. 2.5 A

Weight

Approx. 0.18 kg

External Dimensions

111.15 x 167.65 (mm)

Full-height, Half-length Regulartory Compliance EMC Standards:

[CE Marking]

[C-Tick Marking]

[KC Marking]

PARTS NAME AND FUNCTIONS

RDY lamp

Lights when it diaghoses the card as normal.

RCV lamp

Lights when it detects signals on a control bus.

SND lamp

Lights when it sends signals to a control bus.

Ethernet connector

Connects a CAT5e (Enhanced Category 5 cable)

COMPATIBILITY WITH VI701

The Vnet/IP interface of VI702 is compatible with VI701 card so that the VI701 card and VI702 card can be installed together in a same bus.

Moreover, setting the domain number and station number of a VI702 card can be performed in a same way as for a VI701 card.
