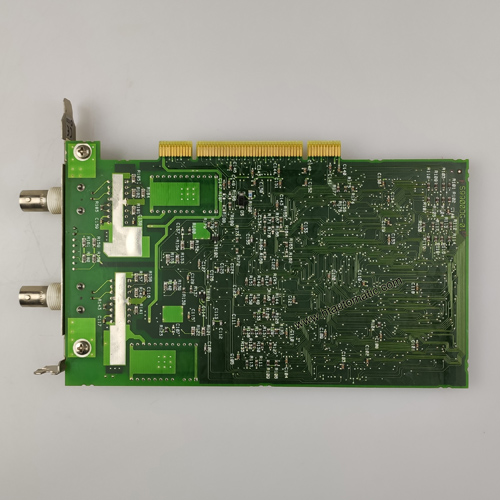

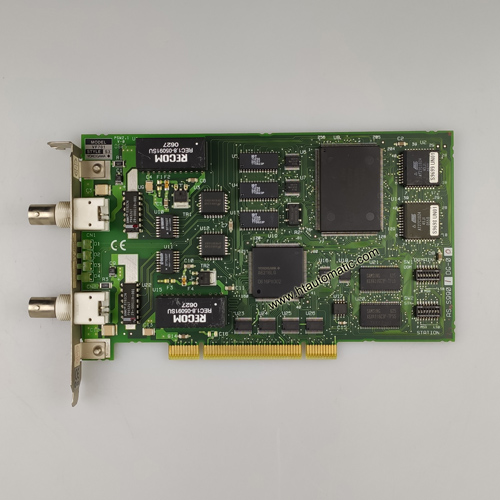

YOKOGAWA VF701 Interface Card, 5pcs VF701 in stock now

GENERAL
By installing the control bus interface card into the PCI Express slot of the PC/AT compatible computer, the computer is connected to Vnet/IP.

FUNCTION
Interface between the PCI Express and Vnet/IP

SPECIFICATIONS
For conforming standards of the CENTUM VP system, see “System Overview (Vnet/IP Edition)”

Communication Speed
1 Gbps Full Duplex

Connection Specifications
Cable:  CAT5e (Enhanced Category 5 cable), UTP Transmission:  1000BASE-T compliance
Connector: RJ45 connector Max. distance: 100 m (Distance between VF702 and Layer 2 switch)

Voltage
Power supply voltage: 3.3 V ± 9 %

Current Consumption
Max. 2.5 A

Weight
Approx. 0.18 kg

External Dimensions
111.15 x 167.65 (mm)
Full-height, Half-length Regulartory Compliance EMC Standards:
[CE Marking]
[C-Tick Marking]
[KC Marking]

PARTS NAME AND FUNCTIONS

RDY lamp
Lights when it diaghoses the card as normal.
RCV lamp
Lights when it detects signals on a control bus.
SND lamp
Lights when it sends signals to a control bus.
Ethernet connector
Connects a CAT5e (Enhanced Category 5 cable)

COMPATIBILITY WITH VF701
The interface of VF702 is compatible with YOKOGAWA VF701 interface card so that the VF701 YOKOGAWA interface card and VF702 card can be installed together in a same bus.
Moreover, setting the domain number and station number of a VF702 card can be performed in a same way as for a VF701 YOKOGAWA interface card.

MODEL AND SUFFIX CODE

Model Description
VF701 Interface Card
