EJA210A/ EJA220A |

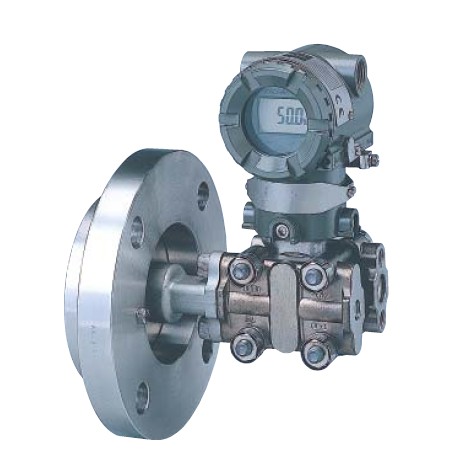

YOKOGAWA EJA210A, EJA220A Flange Mounted Differential Pressure Transmitters
The high-performance YOKOGAWA EJA210A and YOKOGAWA EJA220A flange mounted differential pressure transmitter can be used to measure levels of densities of solidifying or precipitating liquids.
The YOKOGAWA EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.
Ordering Examples:
EJA210A- DMSA1D4A-92DN
EJA210A- DHSA1D4A-92EN
EJA210A- EMSA1D4A-92NN
EJA210A- EHSA1D4A-92EN
EJA210A- DMSA1E4A-97DN
EJA210A- DHSA1E4A-97NN
EJA210A- EMSA1E4A-97DN
EJA210A- EHSA1E4A-97EN
EJA210A- DMWA1B4A-92NN
EJA210A- DMWA1B2B-97EN
EJA210A- DMWA1B3A-97DN
EJA210A- DMWA1B3A-97NN
EJA220A-DMSA12G4A-92DN
EJA220A-DMSA12G3A-92EN
EJA220A-DHSA12G4A-92EN
EJA220A-DHSA22G4A-92EN
EJA220A-EMSA22G4A-92DN
EJA220A-EMSA12G4A-92DN
EJA220A-EMSA12G3A-92DN
EJA220A-DMSA12G4B-97EN
EJA220A-DMSA12G3B-97EN
EJA220A-DHSA12G4B-97EN
EJA220A-DHSA22G4B-97EN
EJA220A-EMSA22G4B-97EN
EJA220A-EMSA12G4B-97EN
EJA220A-EMSA12G3B-97EN
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKOGAWA Flange Mounted Differential Pressure Transmitters EJA210A, EJA220A
|
|
EJA210A / EJA220A
Liquid Level Differential Pressure Transmitter |
|
M Capsule |
H Capsule |
|
Range |
-100 to 100 kPa
(-400 to 400 inH2O) |
-500 to 500 kPa
(-2000 to 2000 inH2O) |
|
Span |
1 to 100 kPa
(4 to 400 inH2O) |
5 to 500 kPa
(20 to 2000 inH2O) |
|
Accuracy |
±0.2% |
±0.2% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) |
|
Maximum working pressure |
Flange rating pressure |
|
Mounting |
Flange mounting |
|
Process flange size |
EJA210A: 3-inch (80mm), 2-inch (50mm)
EJA220A: 4-inch (100mm), 3-inch (80mm) |
|
Diaphragm material
(High side) |
SUS316L, Hastelloy C-276, Tantalum |
|
Process flange material |
S25C, SUS304, SUS316 |
|
Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) | |
|
