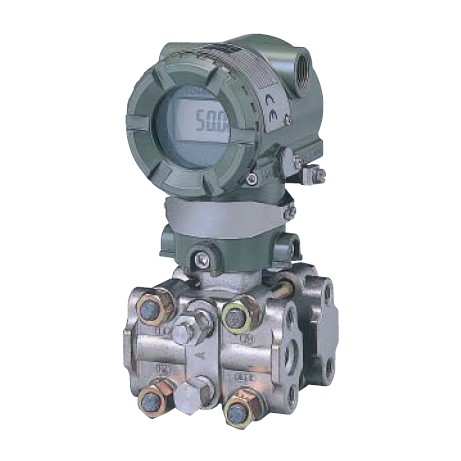

YOKOGAWA EJA310A Absolute Pressure Transmitter
The high-performance YOKOGAWA EJA310A gauge pressure transmitter can be used to measure liquid, gas, or steam pressure.
The YOKOGAWA EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.
EJA310A User's Manual
Ordering Examples:
EJA310A-DMS4A-92DA
EJA310A-EMS4A-92DB
EJA310A-DMS2A-97DN
EJA310A-DMS3A-97DA
EJA310A-EMS2A-97EB
EJA310A-EMS3A-97EN
EJA310A-DMS4B-92DA
EJA310A-EMS4B-92DB
EJA310A-DMS2B-97DN
EJA310A-DMS3B-97DA
EJA310A-EMS2B-97EB
EJA310A-EMS3B-97EN
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKOGAWA Absolute Pressure Transmitter EJA310A
|
|
EJA310A Absolute Pressure Transmitter |
|
L Capsule |
M Capsule |
A Capsule |
|
Range |
0 to 10 kPa abs
(0 to 2.95 inHg abs) |
0 to 130 kPa abs
(0 to 38 inHg abs) |
0 to 3 MPa
(0 to 430psia) |
|
Span |
0.67 to 10 kPa
(0.2 to 2.95 inHg) |
1.3 to 130 kPa
(0.38 to 38 inHg) |
0.03 to 3 MPa
(4.3 to 430 psi) |
|
Accuracy |
±0.2% |
±0.15% |
±0.15% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) for M and A capsule
-40 to 100 deg C (-40 to 212 deg F) (general use type) for L capsule |
|
Maximum overpressure |
500 kPa abs
(72psia) |
500 kPa abs
(72psia) |
4.5 MPa abs
(645psia) |
|
Mounting |
2-inch pipe mounting |
|
Wetted parts material |
Capsule |
SUS316L (Diaphragm material is Hastelloy C-276) |
|
Cover flange |
SUS316 |
|
Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) | |
|
