EJA430A |

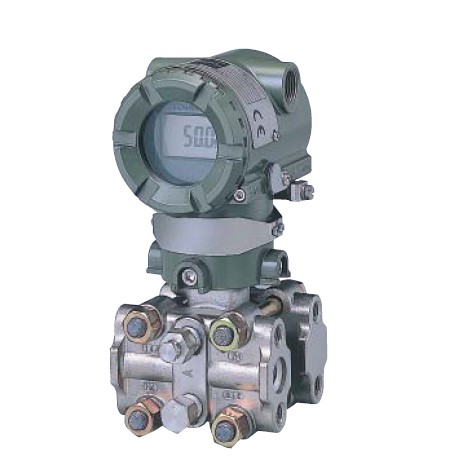

YOKOGAWA EJA430A Gauge Pressure Transmitter
The high-performance YOKOGAWA EJA430A gauge pressure transmitter can be used to measure liquid, gas, or steam pressure.
The YOKOGAWA EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.
Ordering Examples:
EJA430A-DAS4A-92DA
EJA430A-DBS4A-92DB
EJA430A-DMS4A-92DN
EJA430A-EAS4A-97DA
EJA430A-EBS4A-97DB
EJA430A-EMS4A-97DN
EJA430A-DAS4B-92EA
EJA430A-DBS4B-92EB
EJA430A-DMS4B-92EN
EJA430A-EAS4B-97EA
EJA430A-EBS4B-97EB
EJA430A-EMS4B-97EN
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKOGAWA Gauge Pressure Transmitter EJA430A
|
|
EJA430A Gauge Pressure Transmitter |
|
A Capsule |
B Capsule |
|
Range |
-0.1 to 3 MPa
(-15 to 430 psi) |
-0.1 to 14 MPa
(-15 to 2000 psi) |
|
Span |
0.03 to 3 MPa
(4.3 to 430 psi) |
0.14 to 14 MPa
(20 to 2000 psi) |
|
Accuracy |
±0.065% |
±0.065% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) |
|
Maximum overpressure |
4.5 MPa (645 psig) |
21 MPa (3000 psig) |
|
Mounting |
2-inch pipe mounting |
|
Wetted parts material |
Capsule |
SUS316L(Diaphragm material is Hastelloy C-276),
Hastelloy C-276, Tantalum, Monel |
|
Cover flange |
SUS316, Hastelloy C-276, Monel |
|
Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) | |
|
