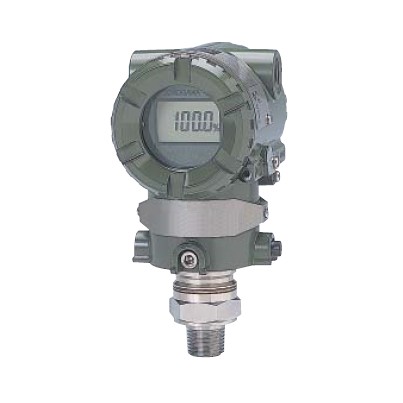

YOKOGAWA EJA510A, EJA530A Absolute and Gauge Pressure Transmitters
The absolute and gauge pressure transmitter model YOKOGAWA EJA510A and YOKOGAWA EJA530A can be used to measure liquid, gas, or steam pressure.
The YOKOGAWA EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.
Ordering Examples:
EJA510A-DAS4N-02DE
EJA510A-DBS4N-04DN
EJA510A-DCS4N-07DF
EJA510A-DDS4N-09DN
EJA510A-DAS4N-02EE
EJA510A-DBS4N-04EN
EJA510A-DCS4N-07EF
EJA510A-DDS4N-09EN
EJA530A-DAS4N-02DE
EJA530A-DBS4N-04DN
EJA530A-DCS4N-07DF
EJA530A-DDS4N-09DN
EJA530A-DAS4N-02NE
EJA530A-DBS4N-04NN
EJA530A-DCS4N-07NF
EJA530A-DDS4N-09NN
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKOGAWA Absolute and Gauge Pressure Transmitters EJA510A, EJA530A
|
|
EJA510A / EJA530A Direct Mount Type Absolute Pressure and Gauge Pressure Transmitter
(Measurement values below are in absolute for EJA510A) |
|
A Capsule |
B Capsule |
C Capsule |
D Capsule |
|
Range |
0 to 200 kPa
(0 to 29 psi) |
0 to 2 MPa
(0 to 290 psi) |
0 to 10 MPa
(0 to 1450 psi) |
0 to 50 MPa
(0 to 7200 psi) |
|
Span |
10 to 200 kPa
(1.45 to 29 psi) |
0.1 to 2 MPa
(14.5 to 290 psi) |
0.5 to 10 MPa
(72.5 to 1450 psi) |
5 to 50 MPa
(720 to 7200 psi) |
|
Accuracy |
±0.2% |
±0.2% |
±0.2% |
±0.2% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) |
|
Maximum overpressure |
4 MPa
(580 psi) |
4 MPa
(580 psi) |
20 MPa
(2900 psi) |
60 MPa
(8500 psi) |
|
Mounting |
Direct Mounting/2-inch pipe mounting |
|
Wetted parts material |
Capsule |
Hastelloy C-276 |
|
Process
connection |
SUS316L, Hastelloy C-276 |
|
Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) | |
|
