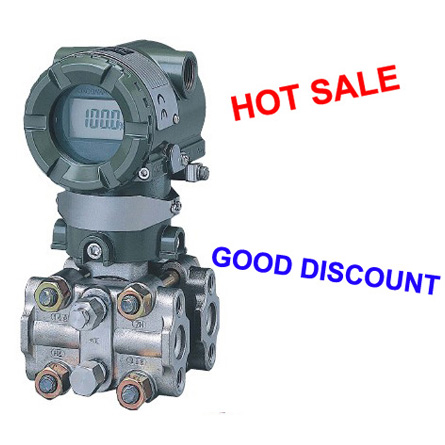

YOKOGAWA EJA110A Differential Pressure Transmitter
The high performance differential pressure transmitter model YOKOGAWA EJA110A can be used to measure liquid, gas, or steam flow as well as liquid level, density and pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.
The YOKOGAWA EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.
Ordering Examples:
EJA110A-DMS5A-92NA/KU2/D3
EJA110A-DMS4A-92DA/KF21/D4
EJA110A-DHS4A-97EA/FF1/D1
EJA110A-EMS5A-92NA/KU2/D3
EJA110A-EMS4B-92DA/KF21/D4
EJA110A-EHS4B-97EA/FF1/D1
EJA110A-DLS5A-92NA/KU2/D3
EJA110A-DLS4A-92DN/KF21/D4
EJA110A-DLS4B-97EA/FF1/D1
EJA110A-EVS5A-92NA/KU2/D3
EJA110A-EVS4B-92DN/KF21/D4
EJA110A-EVS4A-97EA/FF1/D1
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
YOKOGAWA EJA Series (Differential) Pressure Transmiitters:
EJA110A
EJA120A
EJA130A
EJA210A/ EJA220A
EJA310A
EJA430A
EJA440A
EJA510A
EJA530A
EJA118W/ N/ Y
EJA438W/ N
EJA115
EJA110A Features
Excellent performance and stability
The EJA series uses a silicon resonant sensor formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.
Compact and light-weight design
Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.
Fieldbus communication capability
Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.
EJA series offers two types of fieldbus models, FOUNDATION™ fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between Yokogawa and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.
Specifications YOKOGAWA Differential Pressure Transmitter EJA110A
|
|
EJA110A Differential Pressure Transmitter |
|
L Capsule |
M Capsule |
H Capsule |
V Capsule |
|
Range |
-10 to 10 kPa
(-40 to 40 inH2O) |
-100 to 100 kPa
(-400 to 400 inH2O) |
-500 to 500 kPa
(-2000 to 2000 inH2O) |
-0.5 to 14 MPa
(-70 to 2000 psi) |
|
Span |
0.5 to 10 kPa
(2 to 40 inH2O) |
1 to 100 kPa
(4 to 400 inH2O) |
5 to 500 kPa
(20 to 2000 inH2O) |
0.14 to 14 MPa
(20 to 2000 psi) |
|
Accuracy |
±0.075% |
±0.065% |
±0.065% |
±0.065% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC, FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) |
|
Maximum working pressure |
16MPa(2300psi)
3.5MPa(500psi) for L capsule with special materials |
|
Mounting |
2-inch pipe mounting |
|
Wetted parts material |
Capsule |
SUS316L(Diaphragm material is Hastelloy C-276),
Hastelloy C-276, Tantalum, Monel |
|
Cover flange |
SUS316, Hastelloy C-276, Monel |
|
Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) |
