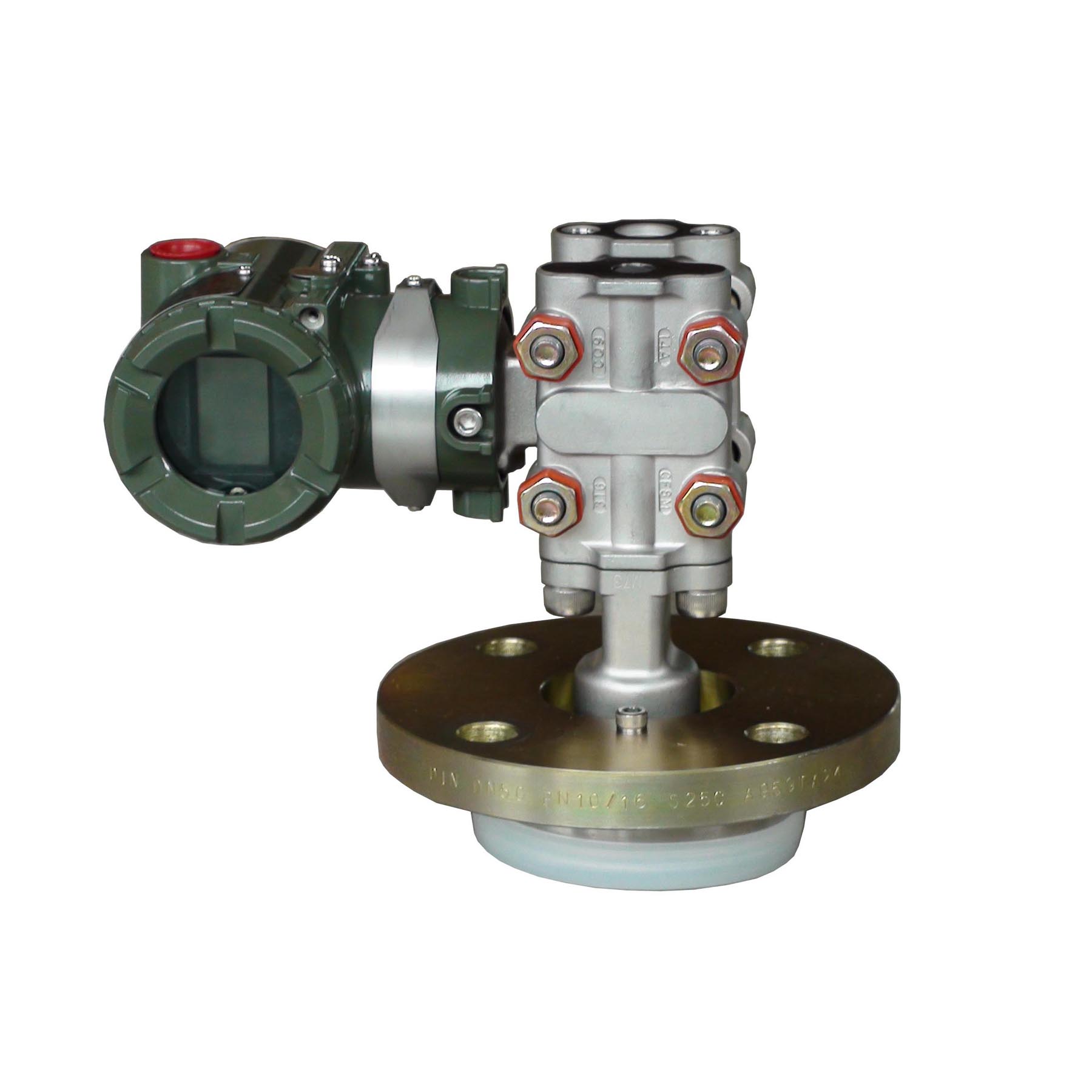

YOKGAWA EJA118W, EJA118N, EJA118Y Diaphragm Sealed Differential Pressure Transmitters
Diaphragm seals are used to prevent process medium form entering directly into the pressure-sensing assembly of the differential pressure transmitter, they are connected to the transmitter using capillaries filled with fill fluid. Model YOKOGAWA EJA118W, YOKOGAWA EJA118N and YOKOGAWA EJA118Y Diaphragm Sealed Differential Pressure Transmitters can be used to measure liquid, gas, or steam flow, as well as liquid level, density, and pressure. They output a 4 to 20 mA DC signal corresponding to the measured differential pressure.
The YOKOGAWA EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.
Ordering Examples:
EJA118W-DMSA1DA-AA03-92DA
EJA118W-EMSA1DA-AA05-92EA
EJA118W-DHSA1DA-AA03-92DN
EJA118W-EHSA1DA-AA04-92DB
EJA118W-DMSA1AB-AA05-97DA
EJA118W-EMSA1AB-AA02-97DB
EJA118W-DHSA1AB-AA03-97EA
EJA118W-EHSA1AB-AA04-97EB
EJA118N-DMSA12GA-AA03-92DA
EJA118N-DHSA12GA-AA05-97DB
EJA118N-EHSA12HA-AA05-92DN
EJA118N-EMSA12HA-AA03-92EA
EJA118N-DMSA12DB-AA03-97EB
EJA118N-DHSA12DB-AA05-97EJ
EJA118N-EHSA12EB-AA05-92EN
EJA118N-EMSA12EB-AA03-92DJ
EJA118Y-DMSA12PA-AC03-92NN
EJA118Y-EMSA12PA-AC03-92DN
EJA118Y-EHSA12PB-AC05-92DA
EJA118Y-DHSA12PB-AC03-92EA
EJA118Y-DMSA12QA-AC03-97EN
EJA118Y-EMSA12QA-AC03-97DB
EJA118Y-EHSA12QB-AC05-97DA
EJA118Y-DHSA12QB-AC03-97EA
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKGAWA EJA118 Diaphragm Sealed Differential Pressure Transmitters
|
|
EJA118W / EJA118N / EJA118Y
Diaphragm Sealed Differential Pressure Transmitters |
|
M Capsule |
H Capsule |
|
Range |
-100 to 100 kPa
(-400 to 400 inH2O) |
-500 to 500 kPa
(-2000 to 2000 inH2O) |
|
Span |
2.5 to 100 kPa
(10 to 400 inH2O) |
25 to 500 kPa
(100 to 2000 inH2O) |
|
Accuracy |
±0.2% |
±0.2% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, TIIS, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
|
Ambient temperature |
-40 to 60 deg C (-40 to 140 deg F) (general use type)
-30 to 60 deg C (-22 to 140 deg F) (with integral indicator)
It must be within the fill fluid operating temprature range |
|
Process temperature |
-50 to 300 deg C (-58 to 572 deg F)
It must be within the fill fluid operating temprature range |
|
Maximum working pressure |
Flange rating pressure |
|
Mounting |
Transmitter: 2-inch pipe mounting
Diaphragm seals: flange mounting |
|
Process flange size |
Flush type: 3-inch(80mm), 2-inch(50mm)
Extended type: 4-inch(100mm), 3-inch(80mm)
|
Combination type: |
4-inch(100mm) for extended high side,
3-inch(80mm) for flush low side |
|
|
Diaphragm material |
SUS316L, Hastelloy C-276, Tantalum, Titanium |
|
Process flange material |
S25C, SUS304, SUS316 |
|
Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel (optional) |
