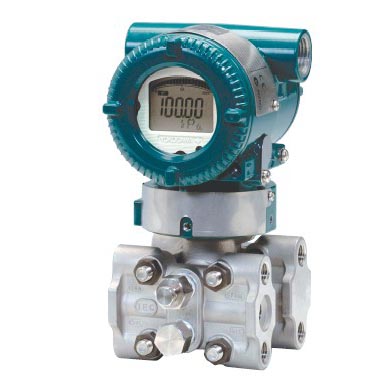

YOKOGAWA EJX310A Absolute Pressure Transmitter
The high performance absolute pressure transmitter YKOGAWA EJX310A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam pressure.
The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage.
The EJX series is available with BRAIN, HART, and FOUNDATION Fieldbus™ communication protocols.
Ordering Examples:
EJX310A-DMS5J-912NB
EJX310A-DAS5G-917DB
EJX310A-EMS5J-912DN
EJX310A-EAS5G-917EN
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKOGAWA Absolute Pressure Transmitter EJX310A
|
|
EJX310A Absolute Pressure Transmitter |
|
L Capsule |
M Capsule |
A Capsule |
B Capsule |
|
Range |
0 to 10 kPa abs
(0 to 2.95 inHg) |
0 to 130 kPa abs
(0 to 38 inHg) |
0 to 3.5 MPa abs
(0 to 500 psia) |
0 to 16 MPa abs
(0 to 2300 psia) |
|
Span |
0.5 to 10 kPa
(0.15 to 2.95 inHg) |
1.3 to 130 kPa
(0.39 to 38 inHg) |
0.0175 to 3.5 MPa
(2.5 to 500 psi) |
0.08 to 16 MPa
(12 to 2300 psi) |
|
Accuracy |
±0.075% |
±0.04% |
±0.04% |
±0.04% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION Fieldbus™, 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC
(10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC
(9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 100 deg C
(general use type) |
-40 to 120 deg C (-40 to 248 deg F)
(general use type) |
|
Maximum overpressure |
500 kPa abs(72 psia) |
16 MPa abs
(2300 Psia) |
25 MPa abs
(3600 psia) |
|
Mounting |
2-inch pipe mounting |
|
Wetted parts material |
Capsule |
316L SST(Diaphragm material is Hastelloy C-276) |
|
Cover flange |
ASTM CF-8M |
|
Housing |
Cast aluminum alloy or ASTM CF-8M stainless steel (option | |
|
