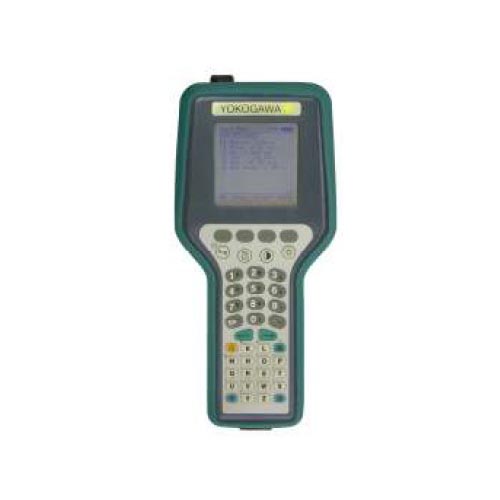

YOKOGAWA YHC4150X Portable HARTR Communicator

The YHC4150X HARTR Communicator is the latest HART communicator from Yokogawa Corporation of America. All HARTR field devices can be configured, polled, and trimmed using the YHC4150X with HARTR communications. The YHC4150X is a full function HARTR Communicator supporting Universal, Common Practice and Device Specific commands for commissioning, configuration and maintenance operations.

YHC4150X supports all HARTR devices at the Universal and Common Practice command levels plus a large and growing list of devices at the Device Specific command level.

Ordering Code:

YHC4150X-01

Accessories:

A900529-00014: HART Test Lead Kit (Included w/YHC) - Standard banana plugs, mini-grabbers, 250 ohm resistor

A36821: Std size 250 ohm shunt resistor (Incl'd w/YHC) - req'd for HART low resistance loops

A900447-00052: DB-9 cable, Male x Female, 6 ft length (incl'd w/YHC); required for updates / communication

4150-13: YHC Carrying Case (incl'd w/YHC) - custom soft case with adjustable shoulder strap and HART lead compartment

A36937: Adjustable, detachable hanging strap (incl'd w/YHC) clips directly to YHC attachment points.

4150-10A: Dongle (incl'd w/YHC) Communications and AC Adapter input to mating YHC connector

A36800: 6 pack, AA Alkaline Batteries (incl'd w/YHC) 6 required for operation

9B000007: Power Adapter, 100 VAC to 240 VAC, 50-60 Hz universal plug kit (incl'd w/YHC)

IM61AYHC1-E-A: Paper Instructions for YHC4150X (Paper and PDF (On CD) instructions incl'd w/YHC)

Standard features include:

• 60 hours battery life (w/o backlight) using AA alkaline batteries

• Quick startup and connect: 15 seconds!

• Update new device profiles and firmware via the Internet – YHC4150X is never out of your hands

• Dongle coordinates AC power adapter and serial communication

• Clone / Upload / Download configurations

• Off-line mode for developing / reviewing configurations

• Document and store more than 200 configurations

• As-found / As-left history with DMS software

• 13-line, 128 x 128 pixel graphic, backlit display

• Full alpha-numeric keypad

• Edit directly from Review/Edit mode

• Quick Menu access key

• HART® menu Home key

• Dedicated text edit keys

• Programmable lock-out settings

• Contrast key for direct adjustment from any mode

• Elastic hand strap and adjustable shoulder strap

• Thumb keys (left hand) for menu Up, Down, and Select

• Custom “use-in-place” soft case with lead kit compartment

SPECIFICATIONS

BASE UNIT: 103/8”L x 4 1/4” to 2 .”W x 1 .” to 1 7/8”D; ABS plastic case, 1.7 lbs. (w/ batts.)

KEYPAD: Membrane keypad: 4 soft, 8 single function, 30 dual function, 3 thumb keys

DISPLAY: 13 line, 128 x 128 pixel graphic display, 2.1” x 2.1” viewable area, backlight

POWER: Six AA alkaline; or 100 – 240 Vac power adapter. Use only approved alkaline batteries for

Intrinsically Safe certified YHC4150X

TEMPERATURE SPECIFICATIONS:

Storage: -40° F to 140° F (-40° C to 60° C)

Operating: 23° F to 122° F (-5° C to 50° C)

CONNECTIONS:

Standard banana jacks (.” center) for HARTR, Odu connector for dongle. Dongle coordinates AC

power and DB-9 serial communications

Certification: Intrinsically Safe: ATEX, CULUS (approved AA alkaline batteries only) II 1 G EEx ia IIC T4

Intrinsically safe, Exia Class I, Div. 1 Groups A, B, C, D: T4 -5oC<Ta<+50oC
