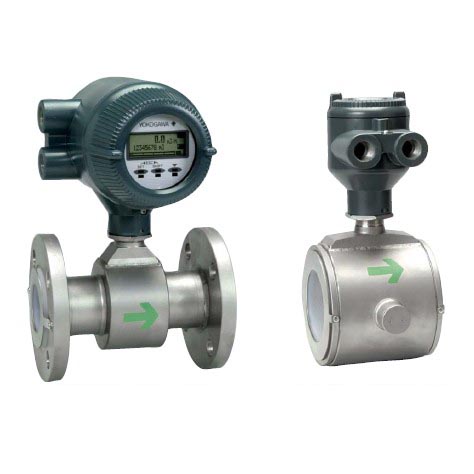

YOKOGAWA ADMAG AXF Magnetic Flowmeters

The YOKOGAWA AXF magnetic flowmeter is sophisticated product with outstanding reliability and ease of operation, developed on the basis of decades of fieldproven experience.
The YOKOGAWA AXF magnetic flowmeter is significantly easier to maintain thanks to the combination of replaceable electrodes and a diagnostic function that detects the adhesion level on the electrodes. The AXF also employs a dual frequency excitation method (available for sizes up to 400 mm / 16 in.) that eliminates fluid noise. A newly enhanced dual frequency excitation method is also available as an option for more difficult applications to ensure greater stability and quicker response.

Based on FOUNDATION™ fieldbus specifications, AXF Fieldbus models offer more flexible instrumentation through a higher level communication capability and propose the cost reduction by multi-drop wirings with less cables.
FOUNDATION™ fieldbus is a registered trademark of Fieldbus FOUNDATION.

Ordering Examples:

1)    Wafer Type:

      AXR025G-D1AL1N-AA11-21B
      AXR040G-E1AL1S-AA21-02B
      AXR050G-D1AL1L-AD11-22B
      AXR065G-E1AL1N-AD21-41B
      AXR080G-D1AP1S-AD41-42B
      AXR100G-E1AL1L-AJ12-0NB
      AXR150G-D1AL1L-AJ21-2NB
      AXR200G-E1AL1S-AG22-01B

2)    Flange Type:

YOKOGAWA AXR025G-D1AL1N-BA11-21B
YOKOGAWA AXR040G-E1AL1S-BA21-02B
YOKOGAWA AXR050G-D1AL1L-BD11-22B
YOKOGAWA AXR065G-E1AL1N-BD21-41B
YOKOGAWA AXR080G-D1AP1S-BD41-42B
YOKOGAWA AXR100G-E1AL1L-BJ12-0NB
YOKOGAWA AXR150G-D1AL1L-BJ21-2NB
YOKOGAWA AXR200G-E1AL1S-BG21-01B

If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.

Note: The “Dual Frequency Excitation Method” is a Yokogawa innovation.

Features: Magnetic Flowmeters YOKOGAWA ADMAG AXF

User-oriented Functionality

  Fluid Adhesion Level Diagnosis

  The amount of insulating material on the electrode is constantly monitored to determine when maintenance should be performed. An optional replaceable electrode is easy to remove and clean.

  Flexible Electrical Connection Direction

  The converter or the terminal box can be rotated in either direction to match the position of the electrical connections at the installation site.

  Clear and Versatile Indications

  The large, backlit full dot matrix LCD can display a variety of messages up to three lines in length. When an alarm condition occurs, a full description of the appropriate countermeasure is displayed.

  Easy Setup

 The most frequently used parameters are arranged in a group at the top of the display. Infrared switches enable the setting of parameters without opening the cover.

Operation Immediately after Installation

The AXF is shipped with the main parameters completely set and can go into operation as soon as installation and wiring are completed.

Expansion of Product Lineup

  Improved Accuracy Specification

  The standard accuracy is 0.35% of reading. Also available as an option is high accuracy calibration rated at 0.2% of reading.

Extra Small Size Flange Type

  Flange types are now available in sizes as small as 2.5 mm.

  Variety of Sanitary Connections

  A wider variety of sanitary connections are now available, including Tri-Clamp, ISO, DIN and SMS.

Enhanced Performance

  Enhanced Dual Frequency Excitation

  The enhanced dual frequency excitation method is available as an option. This provides highly stable measurements involving high concentration slurries or low conductivity fluids.

  Lower Minimum Conductivity.

  The newly designed AXF converter permits the measurement of fluids with conductivity as low as 1μS/cm depending on the nominal pipe size and fluid condition.

  High-Speed Pulse Output:

  The maximum rate for high speed applications such as short-duration batch processes is now 10,000 pps (pulses per second).

Specifications: ADMAG AXF Magnetic Flowmeters
