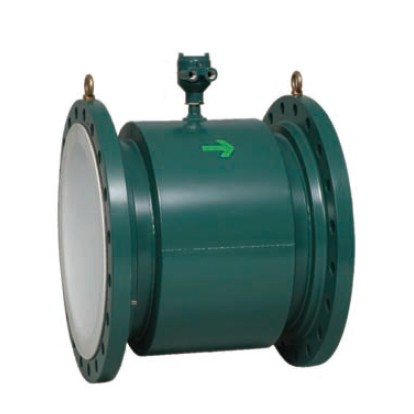

YOKOGAWA ADMAG AXW Magnetic Flowmeters
Many of the fluids measured by large size magnetic flowmeters are water and water-based liquids which are essential to life. YOKOGAWA provides ADMAG AXW for water applications.
Our reliable ADMAG AXW realizes assured flow measurements.
The ADMAG AXW™ series of magnetic flow meters has been developed based on Yokogawa's decades long experience in Magnetic Flowmeters. The AXW series continues the tradition of high quality and reliability that has become synonymous with the Yokogawa name.
The AXW series is ideal for industrial process lines, and water supply / sewage applications. With outstanding reliability and ease of operation, developed on decades of field-proven experience, the AXW will increase user benefits while reducing total cost of ownership.
Sizes are available from 500mm (20in.) to 1000mm (40in.) with a wide liner selection such as PTFE, hard rubber, and polyurethane lining. Offering industry standard process connections such as ASME, AWWA, EN, JIS, and AS flange standards. A submersible version is also available.
Features: ADMAG AXW Magnetic Flowmeters YOKOGAWA
|
Dependable Large Size Magnetic Flowmeter |
|
|
|
|
Reliability |
|
|
|
Focusing the design of ADMAG AXW on measuring water and water-based liquids, the specifications are simplified and shaped up from our conventional large size meters.
ADMAG AXW provides reliable measurement for water applications. |
|
|
|
|
Robustness |
|
|
|
Stable and ceaseless measurement is essential for water applications.
YOKOGAWA has been manufacturing large size meters for more than half a century.
ADMAG AXW inherits our technical knowledge and know-how on such as materials, thickness of tubing and lay length.
All elements of ADMAG AXW are based on YOKOGAWA’s design philosophy ensuring robustness of our magnetic flowmeters. |
|
|
|
|
Versatility |
|
|
|
ADMAG AXW covers versatile applications in every industry and environment. |
|
|
|
|
Liner material : Fluorocarbon PTFE, Natural hard rubber, Polyurethane rubber |
|
|
|
|
Flange connection: ASME, AWWA, EN, JIS and AS |
|
|
|
|
Combined Converter |
|
|
|
AXFA11 Remote Converter
|
Specifications: YOKOGAWA AXW Magnetic Flowmeters
|
|
|
|
Nominal Pipe Size |
500mm (20in.) to 1000mm (40in.)
(General-purpose / Submersible) |
|
Power Supply |
100 to 240 V AC or 100 to 120 V DC,
24 V AC/DC [ combined with AXFA11 ] |
|
Output Signals |
One current output, One pulse output,
One alarm output, Two status outputs
[ combined with AXFA11 ] |
|
Electrode Material |
JIS SUS316L (AISI 316L SS Equivalent),
Hastelloy C276 Equivalent |
|
Fluid Temperature |
-10 to 120 deg.C (14 to 248 deg.F)
[ depends on model type ] |
|
Ambient Temperature |
-10 to 60 deg.C (14 to 140 deg.F)
[ depends on model type ] |
|
Accuracy |
0.35 to 0.5% of rate
[ depends on model type ] |
|
Fluid Conductivity |
20 μS /cm or larger |
|
Lining Materials |
Fluorocarbon PTFE
Natural hard rubber
Polyurethane rubber |
|
Connection Flange Type |
ASME, AWWA, EN, JIS, AS |
* Please refer to General Specifications in detail.
|
|
