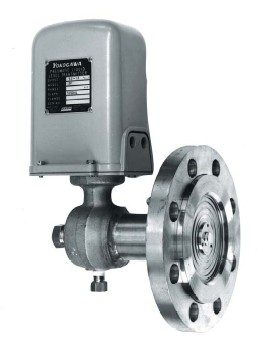

YOKOGAWA Y/15FA and Y/13FA Pneumatic Differential Pressure Transmitter
YOKOGAWA Pneumatic Differential Pressure Transmitters Model Y/15A measure differential pressure in spans from 1.25 to 6.2 kPa at static pressure to 3.5 MPa. The instruments transmit a proportional 20 to 100 kPa signal to remote pneumatic receivers.
Ordering Examples:
Y/15A-LS1
Y/15A-LS2
Y/15A-LS3
Y/15A-LS4
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
■FEATURES
● Time-Proven Pneumatic Differential Pressure Transmitter Design
● Trouble-Free Construction.
● Excellent Performance.
● Easy to Calibrate.
● Wide Range Capability.
● Versatile Applications Capability for Flow, Liquid Level, and Density Measurements.
■STANDARD SPECIFICATIONS
Span Limits:
1.25 to 6.2 kPa.
Span is continuously adjustable within range limits.
Range Limits *:
-12.5 to 12.5 kPa.
* When lower range-value is other than zero, optional kit for elevated-zero or suppressed-zero ranges is installed.
Static Pressure Limits:
3.5 MPa.
Output Signal:
20 to 100 kPa.
Accuracy (includes linearity, hysteresis and repeatability):
_0.5 % of span.
Repeatability:
0.1 % of span.
Dead Band:
0.05 % of span.
Air Supply Pressure:
140 kPa, 1.4 kgf/cm2 or bar, 1.4 bar, or 20 psi.
Air Consumption:
0.5 m3/h at 0 _C, 101.3 kPa (1.033 kgf/cm2} absolute (0.3 scfm).
Ambient Operating Temperature Range:
-40 to 120 _C (-40 to 250 _F).
Process Temperature Limits:
-40 and 120 _C (-40 and 250 _F) at capsule.
Mounting:
Bracket for nominal 50 mm (2 inches) horizontal or vertical pipe. Transmitter must be mounted with capsule faces vertical.
Model Y/15A
Pneumatic Differential Pressure Transmitter
Yokogawa Electric Corporation
Air Connection:
Tapped for JIS R1/4 or 1/4 NPT, whichever specified.
Process Connections:
JIS Rc1/2, Rc1/4, 1/2 NPT, or 1/4 NPT female, whichever specified.
Wetted Parts Material:
Body: Forged JIS SUS 316 stainless steel.
Process Connectors: SCS 14 A (equivalent to SUS 316 Stainless Steel casting)
Diaphragm Capsule: SUS 316L stainless steel.
Forced Bar: SUS 316 stainless steel.
Forced Bar Seal: Cobalt-nickel alloy.
Process Connector Gasket: Teflon (PTFE) (see Note 1).
Capsule Gasket: SUS 316L stainless steel coated with Teflon.
Force Bar Seal Gasket: Silicone elastomer.
Connection Hardware:
JIS SCM435 chrome-molybdenum steel cap screws and nuts for body; JIS SCM435 cap screws for process connectors.
Cover:
Cast aluminum, finished with gray polyurethane paint.
Gasketed for National Electrical Manufacturers Association (NEMA) (USA) Type 3 weatherproof service.
Approximate Weight:
15 kg (33 lb).
