YOKOGAWA DXAdvanced DX1000N Paperless Recorder
Removable Chassis Model

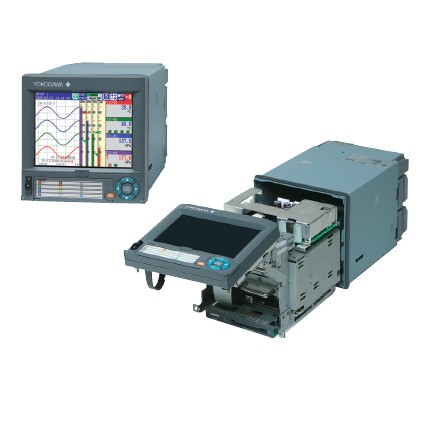

Features an inner chassis that can be removed from the case via the front panel of the instrument, and providing access to all of the internal components of the YOKOGAWA DX1000N from the control panel without having to access the rear of the unit or disturb any of the field and power supply wiring.
YOKOGAWA DXAdvanced® Removable Chassis Model DX1000N
The new DXAdvanced DX1000N features an inner chassis that can be removed from the case via the front panel of the instrument. This provides access to all of the internal components of the DX1000N from the control panel without having to access the rear of the unit or disturb any of the field and power supply wiring. Functionality, appearance, and panel cutout dimensions are the same as those of the standard YOKOGAWA DX1000.
Ordering Examples:
DX1002N-3-4-2: 2 Channels, 125ms (Fast sampling mode: 25ms)
DX1004N-3-4-2: 4 Channels, 125ms (Fast sampling mode: 25ms)
DX1006N-3-4-2: 6 Channels, 125ms (Fast sampling mode: 25ms)
DX1012N-3-4-2: 12 Channels, 125ms (Fast sampling mode: 25ms)
Options:
/A1 Alarm output 2 points
/A2: Alarm output 4 points
/A3: Alarm output 6 points
/A4: Alarm output 12 points
/A5: Alarm output 24 points
/C2: RS-232 interface
/C3: RS-422A/485 interface
/D5: VGA output
/F1: FAIL/Status output
/F2: FAIL + Alarm output 22 points
/H2: Clamped input terminal (detachable)
/H5: Desktop type (only for /P1 model, without power cable, screw type power terminal)
/H5[ ]: Desktop type
/M1: Mathematical functions
/N1: Cu10,Cu25 RTD input/3 leg isolated RTD
/N2: 3 leg isolated RTD
/N3: Extended input type (PR40-20, Pt50, etc.)
/P1: 24VDC/AC power supply
/R1: Remote control
/TPS4: 24VDC transmitter power supply (4 loops)
/TPS8: 24VDC transmitter power supply (8 loops)
/USB1: USB interface
/PM1: Pulse input (including remote control and mathematical functions)
/CC1: Calibration correction function
/MC1: External input function
/BT2: Multi-batch function
/CP1: PROFIBUS-DP communication interface
/AS1: Advanced security function
Optional Accessories:
Shunt resister (for screw input terminal): 415920, 415921, 415922
Shunt resister (for clamped input terminal): 438920, 438921, 438922
CF card adapter: 772090
CF card: 772093, 772094, 772095
Mounting bracket: B9900BX
Door lock key: B8706FX
Remote control terminal: 438227
Validation document: 438230
General Specifications
Construction
Mounting: Flush panel mounting (on a vertical plane)
Mounting may be inclined downward up to
30 degrees from a horizontal plane.
Allowable panel thickness:
2 to 26 mm
Material: Case: drawn steel
Bezel: polycarbonate
Display filter: polycarbonate
Case color:
Case: Grayish blue green
(Munsell 2.0B 5.0/1.7 or equivalent)
Bezel: Charcoal grey light
(Munsell 10B 3.6/0.3 or equivalent)
Front panel:
Water and dust-proof*
(based on IEC529-IP65 and NEMA No.250
TYPE4 for indoor locations (except external icing test))
*Except for side-by-side mounting.
Dimensions:
144 (W) _144 (H) _254.1 (D) mm
144 (W) _144 (H) _258.5 (D) *mm
*In case of /H2 or /PM1 option is specified.
Weight: approx. 3.7 kg*
*without optional features
Input
Number of inputs:
YOKOGAWA DX1002N: two channels
YOKOGAWA DX1004N: four channels
YOKOGAWA DX1006N: six channels
YOKOGAWA DX1012N: twelve channels
Measurement interval:
YOKOGAWA DX1002N Paperless Recorder, YOKOGAWA DX1004N Paperless Recorder:
125 ms, 250 ms, 25 ms (fast sampling mode*)
YOKOGAWA DX1006N Paperless Recorder, YOKOGAWA DX1012N Paperless Recorder:
1 s (Not available when A/D integration time is set to 100 ms), 2 s, 5 s, 125 ms (fast sampling mode*)
* A/D integration time is fixed to 1.67 ms in case of fast sampling mode.
Inputs: DCV (DC voltage), TC (thermocouple), RTD
(resistance temperature detector), DI (digital input for event recording), DCA (DC current with external shunt resistor attached)
