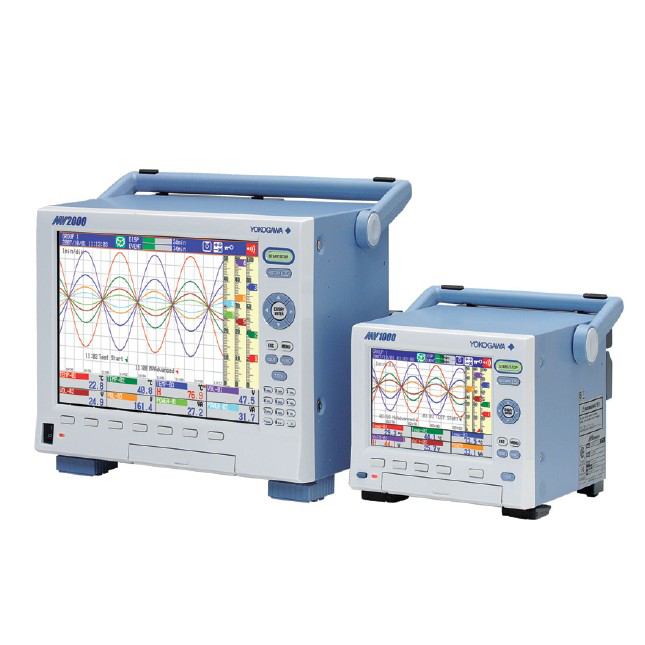

YOKOGAWA MVAdvanced^® MV1000/MV2000 Paperless Recorder

Portable Paperless Recorder
MV1000: up to 24 input channels
MV2000: up to 48 input channels
Internal memory: 400 MB

The YOKOGAWA MVAdvanced MV1000/MV2000 is a portable recorder that displays real-time measured data on a color LCD and saves data on a CompactFlash memory card (CF card). It can be hooked up to network via Ethernet, which enables to inform by E-mail and to monitor on Web site as well as to transfer files by using FTP. Also, it can communicate with Modbus RTU or Modbus TCP.

The data saved on a CF card can be converted by data conversion software to MS-Excel or text format file, facilitating processing on a PC. Not only this, the Viewer software allows a PC to display waveforms on its screen and to print out waveforms.

General Specification

Construction

YOKOGAWA MV1000 external dimensions:

189(W) x 177(H) x 253(D) mm

189(W) x 177(H) x 259(D)* mm

*In case of clamped input terminal or /PM1 option is equipped.

Battery drive model 186 mm (H)

YOKOGAWA MV1000 weight:

Approx. 3.5 kg (MV1024)*

*In case of clamped input terminal, without optional features.

Add approximately 1.2 kg to the battery drive model

YOKOGAWA MV2000 external dimensions:

307(W) x 273(H) x 254(D) mm

307(W) x 273(H) x 260(D)* mm

* In case of clamped input terminal or /PM1 option is equipped.

YOKOGAWA MV2000 weight:

Approx. 5.6 kg (MV2048)*

*In case of clamped input terminal, without optional features.

Ordering Examples:

YOKOGAWA MV1004-3-4-2-1-1D: 4 channels, 125 ms (Fast sampling mode: 25 ms)

YOKOGAWA MV1006-3-4-2-1-2F: 6 channels, 1 s (Fast sampling mode: 125 ms)

YOKOGAWA MV1008-3-4-2-2-1R: 8 channels, 125 ms (Fast sampling mode: 25 ms)

YOKOGAWA MV1012-3-4-2-2-2Q: 12 channels, 1 s (Fast sampling mode: 125 ms)

YOKOGAWA MV1024-3-4-2-1-3H: 24 channels, 1 s (Fast sampling mode: 125 ms)

YOKOGAWA MV2008-3-4-2-1-1D: 8 channels, 125 ms (Fast sampling mode: 25 ms)

YOKOGAWA MV2010-3-4-2-1-2F: 10 channels, 1 s (Fast sampling mode: 125 ms)

YOKOGAWA MV2020-3-4-2-2-1R: 20 channels, 125 ms (Fast sampling mode: 25 ms)

YOKOGAWA MV2030-3-4-2-2-2Q: 30 channels, 1 s (Fast sampling mode: 125 ms)

YOKOGAWA MV2040-3-4-2-1-1P: 24 channels, 1 s (Fast sampling mode: 125 ms)

YOKOGAWA MV2048-3-4-2-1-2W: 48 channels, 1 s (Fast sampling mode: 125 ms)

Options

/A1 Alarm output 2 points

/A2: Alarm output 4 points

/A3: Alarm output 6 points

/C2: RS-232 interface

/C3: RS-422A/485 interface

/F1: FAIL/Status output

/M1: Mathematical functions

/N1: Cu10,Cu25 RTD input/3 leg isolated RTD

/N2: 3 leg isolated RTD

/N3: Extended input type (PR40-20, Pt50, etc.)

/R1: Remote control

/TPS2: 24 VDC transmitter power supply (2 loops)*

/PM1: Pulse input (including remote control and mathematical functions)

/CC1: Calibration correction function

Optional Accessories:

Shunt resister (for screw input terminal): 415920, 415921, 415922

Shunt resister (for clamped input terminal): 438920, 438921, 438922

CF card adapter: 772090

CF card: 772093, 772094, 772095

Soft carrying case: 790501, 701964

Rack mount bracket (JIS): B8805JU

Rack mount bracket (ANSI): B8805JT

Rack mount bracket (JIS): B8806JU

Rack mount bracket (ANSI): B8806JT

Vertical stand: B8805JL

Battery Pack: B8805HA

Removable clamped input terminal: A1923JT

Approx Weight

YOKOGAWA MV2008 Paperless Recorder: 5.2 kg

YOKOGAWA MV2010 Paperless Recorder : 5.2 kg

YOKOGAWA MV2020 Paperless Recorder : 5.3 kg

YOKOGAWA MV2030 Paperless Recorder : 5.4 kg

YOKOGAWA MV2040 Paperless Recorder : 5.5 kg

YOKOGAWA MV2048 Paperless Recorder : 5.6 kg
