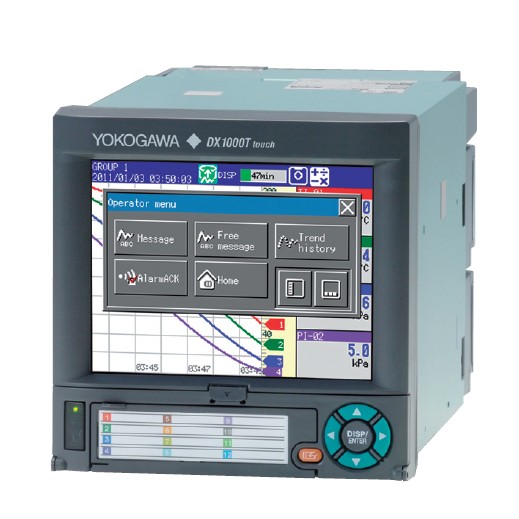

YOKOGAWA DXAdvanced DX1000T/DX2000T Paperless Recorder
Paperless Videographic Recorders Touch Model
Touch screen operator interface provides faster and more intuitive access to common functions.
Ordering Examples:
DX1002T-3-4-2: 2ch, 125ms (Fast sampling mode: 25ms), two channels
DX1004T-3-4-2: 4ch, 125ms (Fast sampling mode: 25ms), four channels
DX1006T-3-4-2: 6ch, 1s (Fast sampling mode: 125ms), six channels
DX1012T-3-4-2: 12ch, 1s (Fast sampling mode: 125ms), twelve channels
DX2004T-3-4-2: four channels, 4ch, 125ms (Fast sampling mode: 25ms)
DX2008T-3-4-2: eight channels, 8ch, 125ms (Fast sampling mode: 25ms)
DX2010T-3-4-2: ten channels, 10ch, 1s (Fast sampling mode: 125ms)
DX2020T-3-4-2: twenty channels, 20ch, 1s (Fast sampling mode: 125ms)
DX2030T-3-4-2: thirty channels, 30ch, 1s (Fast sampling mode: 125ms)
DX2040T-3-4-2: forty channels, 40ch, 1s (Fast sampling mode: 125ms)
DX2048T-3-4-2: forty eight channels, 48ch, 1s (Fast sampling mode: 125ms)
Options:
/A1 Alarm output 2 points
/A2: Alarm output 4 points
/A3: Alarm output 6 points
/A4: Alarm output 12 points
/A5: Alarm output 24 points
/C2: RS-232 interface
/C3: RS-422A/485 interface
/D5: VGA output
/F1: FAIL/Status output
/F2: FAIL + Alarm output 22 points
/H2: Clamped input terminal (detachable)
/H5: Desktop type (only for /P1 model, without power cable, screw type power terminal)
/H5[ ]: Desktop type
/M1: Mathematical functions
/N1: Cu10,Cu25 RTD input/3 leg isolated RTD
/N2: 3 leg isolated RTD
/N3: Extended input type (PR40-20, Pt50, etc.)
/P1: 24VDC/AC power supply
/R1: Remote control
/TPS4: 24VDC transmitter power supply (4 loops)
/TPS8: 24VDC transmitter power supply (8 loops)
/USB1: USB interface
/PM1: Pulse input (including remote control and mathematical functions)
/CC1: Calibration correction function
/MC1: External input function
/BT2: Multi-batch function
/CP1: PROFIBUS-DP communication interface
/AS1: Advanced security function
Optional Accessories:
Shunt resister (for screw input terminal): 415920, 415921, 415922
Shunt resister (for clamped input terminal): 438920, 438921, 438922
CF card adapter: 772090
CF card: 772093, 772094, 772095
Mounting bracket: B9900BX
Door lock key: B8706FX
Remote control terminal: 438227
Validation document: 438230
The YOKOGAWA DX1000T/ DX2000T are Daqstations that displays real-time measured data on a color LCD and saves data on a CompactFlash memory card (CF card). It can be hooked up to network via Ethernet, which enables to inform by Email and to monitor on Web site as well as to transfer files by using FTP. Also, it can communicate with Modbus/RTU or Modbus/TCP.
It comes with a two, four, six-channel or twelve-channel model. As the input signal, a DC voltage, thermocouple, resistance temperature detector, or contact signal can be set to each channel. The data saved on a CF card can be converted by data conversion software to Lotus 1-2-3, Excel, or ASCII format file, facilitating processing on a PC. Not only this, the Viewer software allows a PC to display waveforms on its screen and to print out waveforms.
General Specifications
Construction
Mounting: Flush panel mounting (on a vertical plane)
Mounting may be inclined downward up to
30 degrees from a horizontal plane.
Allowable panel thickness:
2 to 26 mm
Material: Case: drawn steel
Bezel: polycarbonate
Display filter: polycarbonate
Case color:
Case: Grayish blue green
(Munsell 2.0B 5.0/1.7 or equivalent)
Bezel: Charcoal grey light
(Munsell 10B 3.6/0.3 or equivalent)
Front panel:
Water and dust-proof*
(based on IEC529-IP32 for indoor locations
(except external icing test))
*Except for side-by-side mounting.
Dimensions:
288 (W) _288 (H) _221.6 (D) mm
288 (W) _288 (H) _226 (D) *mm
*In case of /H2 or /PM1 option is specified.
Weight:
YOKOGAWA DX2004T, YOKOGAWA DX2010T: approx. 6.0 kg*
YOKOGAWA DX2008T, YOKOGAWA DX2020T: approx. 6.3 kg*
YOKOGAWA DX2030T : approx. 6.9 kg*
YOKOGAWA DX2040T, YOKOGAWA DX2048T: approx. 7.3 kg*
*without optional features
Input
Number of inputs:
YOKOGAWA DX2004T Paperless Recorder: four channels
YOKOGAWA DX2008T Paperless Recorder: eight channels
YOKOGAWA DX2010T Paperless Recorder: ten channels
YOKOGAWA DX2020T Paperless Recorder: twenty channels
YOKOGAWA DX2030T Paperless Recorder: thirty channels
YOKOGAWA DX2040T Paperless Recorder: forty channels
YOKOGAWA DX2048T Paperless Recorder: forty eight channels
Measurement interval:
DX2004T, DX2008T: 125 ms, 250 ms, 25 ms (fast sampling mode*)
DX2010T, DX2020T, DX2030T, DX2040T, DX2048T: 1 s (Not available when A/D integration
time is set to 100 ms), 2 s, 5 s, 125 ms (fast sampling mode*)
* A/D integration time is fixed to 1.67 ms in case of fast sampling mode.
Inputs: DCV (DC voltage), TC (thermocouple), RTD (resistance temperature detector), DI (digital
input for event recording), DCA (DC current with external shunt resistor attached)
