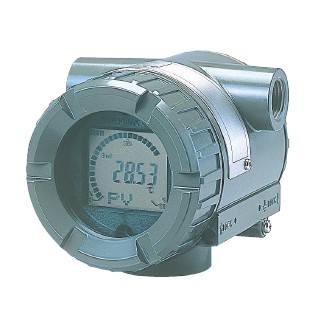

YOKOGAWA YTA310 Temperature Transmitter

YOKOGAWA YTA Series temperature transmitters convert the sensor signals to a unified signal, 4 to 20mA signal or FOUNDATION™ fieldbus. This eliminates the drawbacks of wire resistance and signal noise that are often experienced with conventional temperature instruments, which must be connected by long extension lead wires or three-conductor cables to converters in an instrument panel room.
An additional feature is that both the sensor type and the measurement range can be selected.

Ordering Examples:

YTA310-DA2DB

YTA310-DA2DN

YTA310-EA2DB

YTA310-EA2DN

YTA310-DA2NB

YTA310-DA2NN

YTA310-DA4DB

YTA310-EA4DN

Please state following parameters when placing order:

1)    Input Signal: “RTD Sensor” (“Pt100” is the most used one, other choices: Pt200/ Pt500/ JPt100/ Cu/ Ni120);  or “Thermocouple Type” (“K” type is the most used one, other choices: B/ E/ J/ N/ R/ S/ T/ W3/ W5/ L/ U)

2)    Measurement Range;

3)    2 wire or 3 wire or 4 wire.

If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.

Features: YOKOGAWA Temperature Transmitters YTA310

Outstanding performance
Microprocessor-based sensing technology ensures high accuracy and stability.
High reliability
Dual-compartment housing realizes high resistance capability to harsh environments.
SIL Certification
YTA series temperature transmitters have been certified by TÜV NORD as being compliant with the requirements of the IEC61508 for SIL 2.
Variety of sensor inputs
The type of sensor input is user-selectable: thermocouples, RTDs, ohms, or DC milivolt.
Digital communication
The BRAIN and HART communication protocols are available.
The instrument configuration can be changed by the user with a BT200 terminal or HART communicator.
The YTA320 temperature transmitter also supports FOUNDATION fieldbus communication protocol.
Self-diagnostics function
Continuous self-diagnostics capability ensures long-term performance and lower cost of ownership.
LCD display with bargraph
The LCD display simultaneously displays a digital readout and a bargraph.
Dual universal inputs (Model YTA320)
The YTA320 can accept two thermocouple, RTD, ohm, or DC milivolt inputs. Differential or average temperature transmitter measurement can be selected. A sensor backup function automatically switches-over from the primary sensor to a backup if the sensor fails.

Specifications: YOKOGAWA YTA310 Temperature Transmitters
