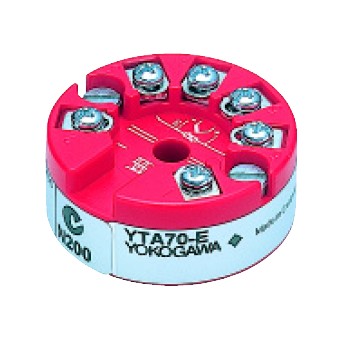

YOKOGAWA YTA70 Temperature Transmitter
The YTA50 and YTA70 are head mount type of temperature transmitters that conform to the standard DIN formB head mounting.
YTA70 general specifications
Ordering Examples:
YTA70-E
YTA70-E/DS2
YTA70-E/KS2
YTA70-E/SS2
Please state following parameters when placing order:
1) Input Signal: “RTD Sensor” (“Pt100” is the most used one, other choice: Ni120); or “Thermocouple Type” (“K” type is the most used one, other choices: B/ E/ J/ N/ R/ S/ T/ W3/ W5/ L/ U)
2) Measurement Range;
3) 2 wire or 3 wire or 4 wire.
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Features: Temperature Transmitter YOKOGAWA YTA70
Outstanding performance
Microprocessor-based sensing technology ensures high accuracy and stability.
Variety of sensor inputs
The type of sensor input is user-selectable: thermocouples, RTDs, ohms, or DC milivolt.
Digital communication
The YTA70 supports HART communication protocol.
Specifications: YOKOGAWA YTA70 Temperature Transmitters
|
Accuracy (typical) |
YTA50: ±0.1% of span or ±0.2deg C(0.36deg F)
YTA70: ±0.1% of span or ±0.1deg C(0.18deg F) |
|
Cold junction Compensation accuracy |
(For T/C only)
±1 deg C (1.8 deg F) |
|
Power supply effect |
±0.005% of FS per volt |
|
Ambient temperature effect |
YTA50: (±0.1% or ±0.1deg C) / 10 deg C
YTA70: (±0.05% or ±0.05deg C) / 10 deg C |
|
Input signal |
Single input
Input type is selectable: thermocouples, 2-, 3-, and 4-wire RTDs, ohm and DC milivolt |
|
Output |
Two wire 4 to 20 mA DC |
|
Supply voltage |
7 to 35 V DC
(7 to 28 V DC for Intrinsically safe type) |
|
Ambient temperature |
Option code may affect limits
-40 to 85 deg C (-40 to 185 deg F) |
|
Mounting |
DIN form B head mounting |
|
Weight |
50g (0.11lb) |
|
Certificates |
CENELEC or FM |
