YTA110

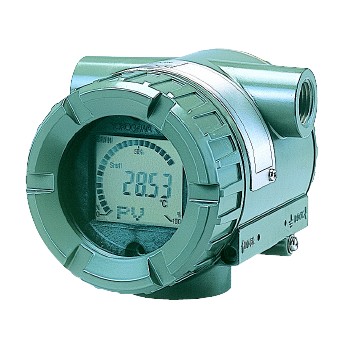

YOKOGAWA YTA110 Temperature Transmitter



YOKOGAWA YTA Series temperature transmitters convert the sensor signals to a unified signal, 4 to 20mA signal or FOUNDATION™ fieldbus. This eliminates the drawbacks of wire resistance and signal noise that are often experienced with conventional temperature instruments, which must be connected by long extension lead wires or three-conductor cables to converters in an instrument panel room.
An additional feature is that both the sensor type and the measurement range can be selected.

       YTA110 general specifications

YTA series With HART Communication general specifications

YTA series Fieldbus Communication general specifications


Ordering Examples:

YTA110-DA2DB

YTA110-DA2DN

YTA110-EA2DB

YTA110-EA2DN

YTA110-DA2NB

YTA110-DA2NN

YTA110-DA4DB

YTA110-EA4DN

Please state following parameters when placing order:

1)    Input Signal:RTD Sensor” (“Pt100” is the most used one, other choices: Pt200/ Pt500/ JPt100/ Cu/ Ni120);  or “Thermocouple Type” (“K” type is the most used one, other choices: B/ E/ J/ N/ R/ S/ T/ W3/ W5/ L/ U)

2)    Measurement Range;

3)    2 wire or 3 wire or 4 wire.

If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.


Features: YOKOGAWA Temperature Transmitters YTA110

Outstanding performance
Microprocessor-based sensing technology ensures high accuracy and stability.
High reliability
Dual-compartment housing realizes high resistance capability to harsh environments.
SIL Certification
YTA series temperature transmitters have been certified by TÜV NORD as being compliant with the requirements of the IEC61508 for SIL 2.
Variety of sensor inputs
The type of sensor input is user-selectable: thermocouples, RTDs, ohms, or DC milivolt.
Digital communication
The BRAIN and HART communication protocols are available.
The instrument configuration can be changed by the user with a BT200 terminal or HART communicator.
The YTA320 temperature transmitter also supports FOUNDATION fieldbus communication protocol.
Self-diagnostics function
Continuous self-diagnostics capability ensures long-term performance and lower cost of ownership.
LCD display with bargraph
The LCD display simultaneously displays a digital readout and a bargraph.

Specifications: YOKOGAWA YTA110 Temperature Transmitters

Accuracy (typical)

YTA110: ±0.1% of span

Cold junction Compensation accuracy

(For T/C only)
±0.5 deg C (0.9 deg F)

Power supply effect

±0.005% of calibration span per volt

Ambient temperature effect

±0.1%/10 deg C (YTA110)

Input signal

YTA110: single input, Input type is selectable: thermocouples, 2-, 3-, and 4-wire RTDs, ohm and DC milivolt

Output

Two wire 4 to 20 mA DC or FOUNDATION fieldbus signal (YTA320)

Supply voltage

BRAIN and HART: 10.5 to 42 V DC
(10.5 to 30 V DC for Intrinsically safe type)
Fieldbus: 9 to 32 V DC
(9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO)

Ambient temperature

Option code may affect limits
-40 to 85 deg C (-40 to 185 deg F)
-30 to 80 deg C (-22 to 176 deg F) with integral indicator

Mounting

Optional mounting bracket can be used either for two-inch pipe or flat panel mounting.

Weight

1.2 kg (2.6lb) without integral indicator and mounting bracket. Integral indicator weighs 0.2kg (0.4lb).

Degrees of protection

IP66, IP67 and NEMA 4X

Certificates

CENELEC, CSA, FM, IECEx or TIIS

SIL Certificate

Certified by TÜV NORD in compliance with the IEC61508 SIL 2 capability for single transmitter use.

#
